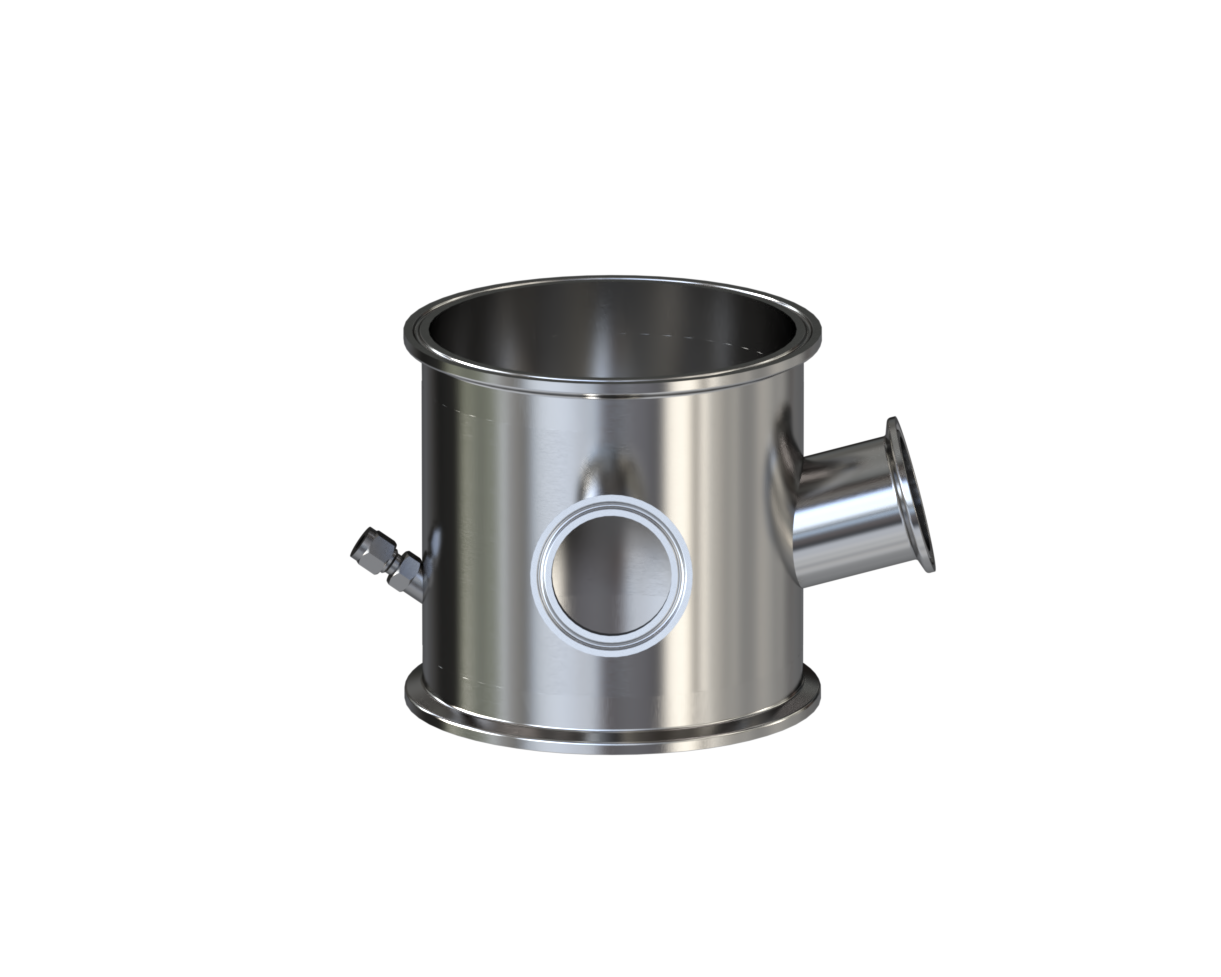

6" Diameter x 6" Tall Sight Spool with Optional K-Type Thermocouple Monitoring
6" Diameter x 6" Tall Sight Spool, featuring 6" sanitary top/bottom connections and 2" sanitary sight glass connections. This versatile sight spool is designed for easy monitoring and temperature control, with an optional K Type Thermocouple for accurate temperature readings. Our data logger is also available for purchase to complement your sight spool. Sight Glasses sold separately.
|Top/Bottom Connection||4" Sanitary|
|Sight Glass Connection||2" Sanitary|
|Gasket Options||Viton, Buna-N, PTFE, Tuf-Steel|
|Clamp Pressure Ratings||2": 1000psi, 6": 300psi|
|Gasket Type||Temperature Range|
|Viton||-26°C to 230°C|
|Buna-N||-40°C to 110°C|
|PTFE||-73°C to 204°C|
|Tuf-Steel||-198°C to 287°C|
*Note: Stainless only. Gaskets/clamps/thermocouples/sight glasses sold separately.
Links to add on parts
Various Length Thermocouple Wires
K-Type Thermocouple Data Logger
N.B.Oler is American Fabricated Stainless steel, made in Bend, Oregon.
Certification is available in all Canadian provinces and U.S. states.
Please note that all products are subject to a 15% restocking fee, and custom orders may be subject to as high as 50%.
