Lenticular Filter 12" Diameter

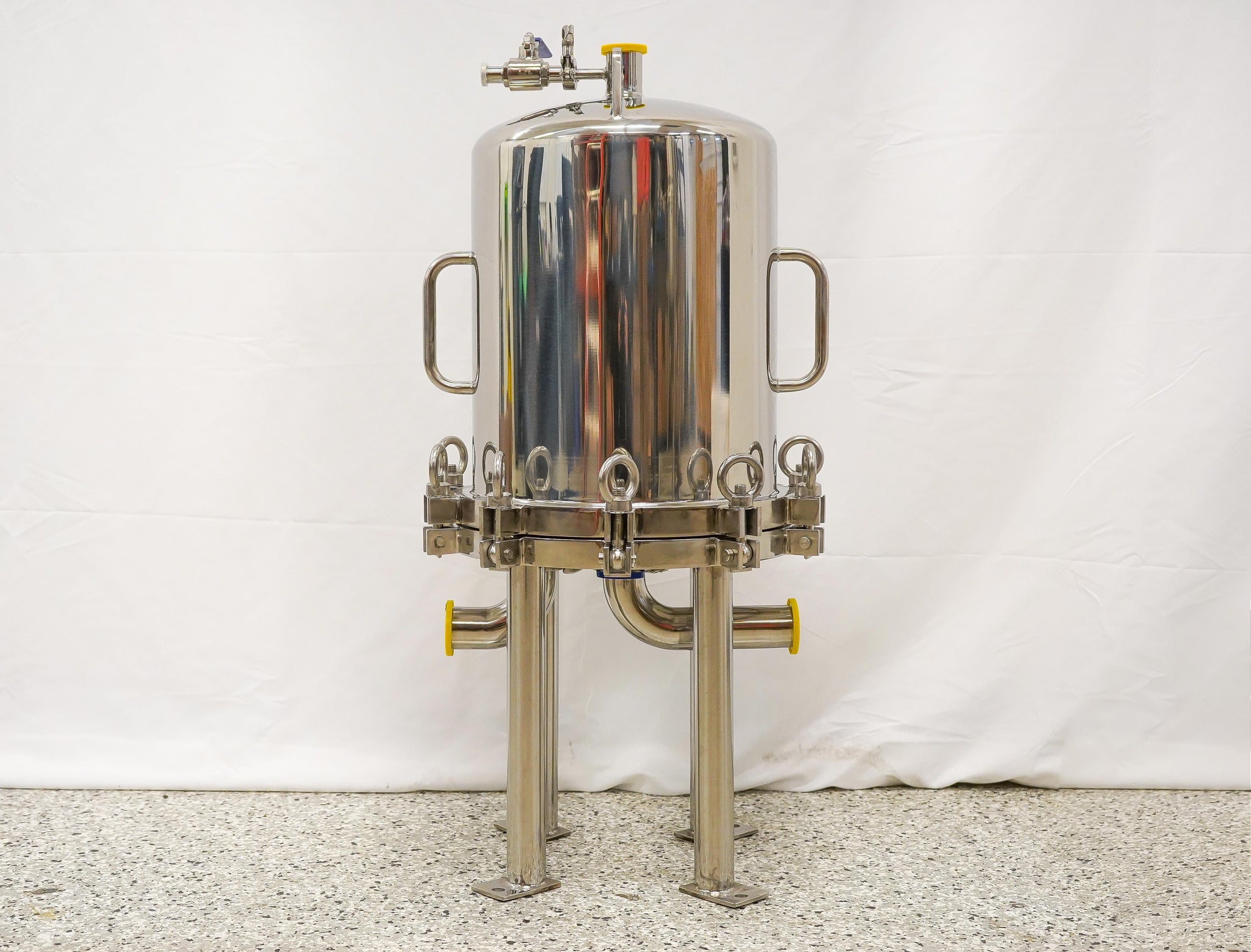

This Lenticular filter housing holds one of the 12” lenticular filter modules.  Lenticular filters are an alternative to plate & frame filters.  Both get the job done, but a lenticular filter will do it in a closed system with no air exposure and no dripping.

A lenticular filter system is also easier and faster to set up and learn how to use.  With a small footprint many users will mount the housing base on casters to make it easier to move around the cellar.

This housing is set up for use with Pall SUPRAdisc II modules, but can easily be retro-fitted for other brands of modules by removing the center post and threading in the appropriate center post for that brand.

Filter options of 1 to 50 microns are available. Each lenticular depth filter has 38.75 ft^3 of surface area.

Inlet/outlet is 2" Sanitary connection.

Lenticular Max Pressure Rating
Max pressure 60psi @ -40ºC.
