Superlok Quick Connect Stem Valved

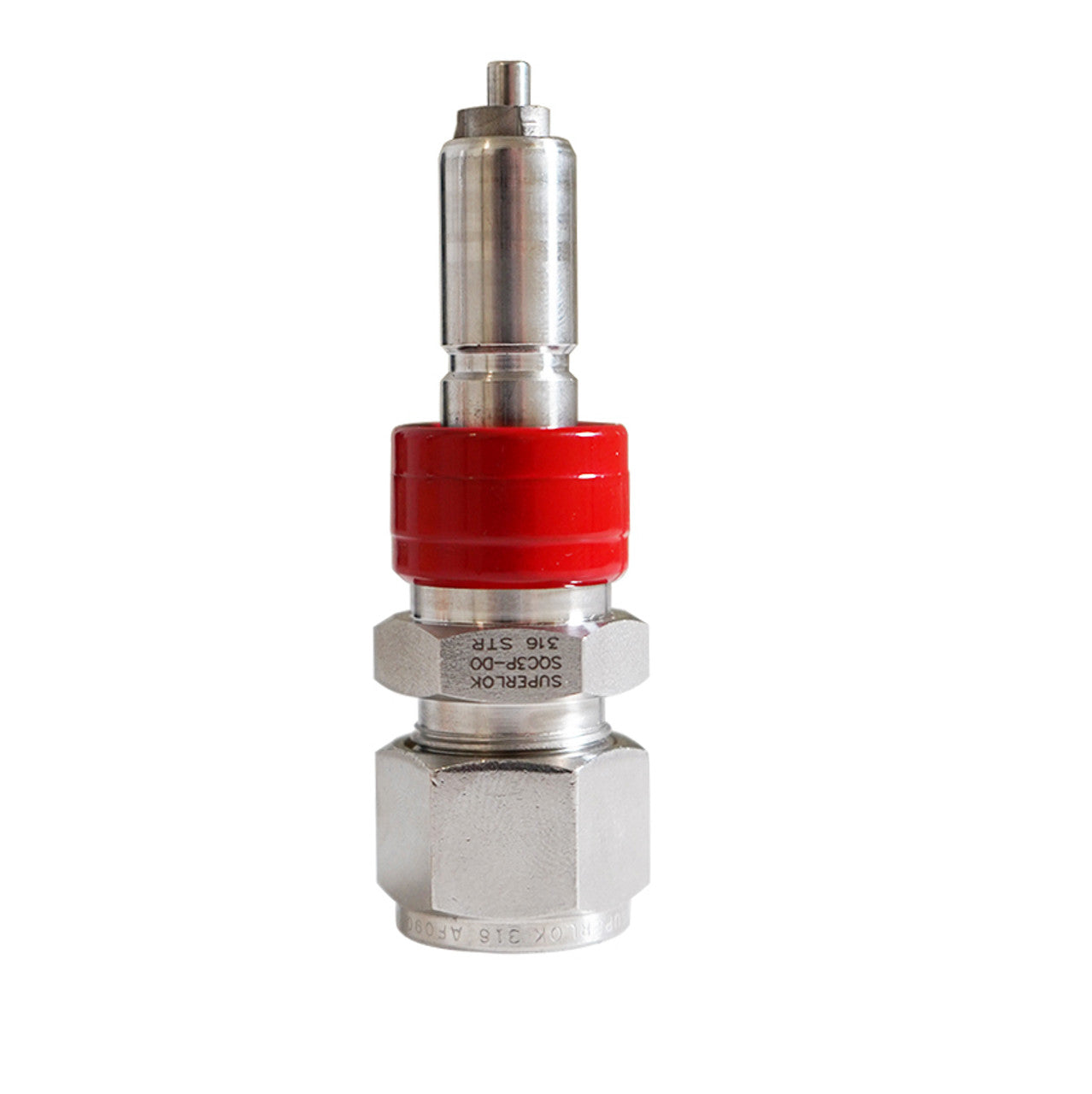

Superlok 3/8″ Quick Connect Stem Valved Fitting for Precision Fluid Systems
The Superlok 3/8" Quick Connect Stem Valved fitting is designed for industrial fluid systems requiring precision, safety, and convenience. Engineered for chemical processing, instrumentation, and oil & gas applications, it provides leak-free performance and efficient, tool-free operation. Constructed from premium 316 stainless steel with FKM O-rings, this fitting delivers corrosion resistance and long-lasting reliability. Its compact design, double shut-off valve, and minimal spillage make it ideal for demanding environments where clean, controlled fluid handling is critical. Perfectly compatible with Superlok tubing systems, it ensures smooth integration and dependable performance across a wide range of applications.

KEY FEATURES

1. Durable Construction
Made from premium 316 stainless steel with FKM O-rings, offering corrosion resistance and long-term reliability in industrial environments.

2. Double Shut-Off Valve (DESO)
Innovative design prevents leakage during connection and disconnection, ensuring clean, safe operation.

3. High Flow Rate
Supports up to 6 gpm (22 L/min) for efficient fluid transfer, maintaining system performance under high-demand conditions.

4. Wide Pressure & Temperature Range
Handles pressures up to 1500 psig @ 70°F and 250 psig @ 400°F, with operating temperatures from –10°F to 400°F (–23°C to 204°C).

5. Compact & Precise Design
Optimized dimensions (A = 67.1 mm, F = 19.1 mm, Insertion Depth = 33.0 mm) allow for easy installation in tight spaces.

6. Minimal Spillage
Disconnection results in only ~1.0 cm³ of fluid release, keeping work areas clean and safe.

PRODUCT SPECIFICATIONS

• Material: 316 stainless steel with FKM O-rings.

• Valve type: Double Shut-Off (DESO).

• Flow rate: up to 6 gpm (22 L/min).

• Pressure rating: 1500 psig @ 70°F; 250 psig @ 400°F.

• Temperature range: –10°F to 400°F (–23°C to 204°C).

• Compact dimensions: A = 67.1 mm, F = 19.1 mm, Insertion Depth = 33.0 mm.

• Minimal spillage: ~1.0 cm³ on disconnect.

• Suitable for Superlok tubing systems, chemical, instrumentation, and oil & gas applications.



BENEFITS

1. Reliable, Leak-Free Performance
DESO double shut-off design prevents fluid leaks during connection or disconnection.

2. Corrosion Resistant
316 stainless steel and FKM O-rings provide long-lasting durability in harsh industrial environments.

3. Efficient Fluid Handling
Supports high flow rates for smoother, faster operations.

4. Safe and Clean Operation
Minimal spillage (~1.0 cm³) keeps work areas tidy and reduces contamination risk.

5. Easy Integration
Compact, precise dimensions make installation simple and compatible with Superlok tubing systems.
