Custom Decarboxylation Systems
$42,500.00
Going through design changes and ASME upgrades. New designs and additional volumes coming soon, stay tuned or reach out for additional information!!!
541-330-6409

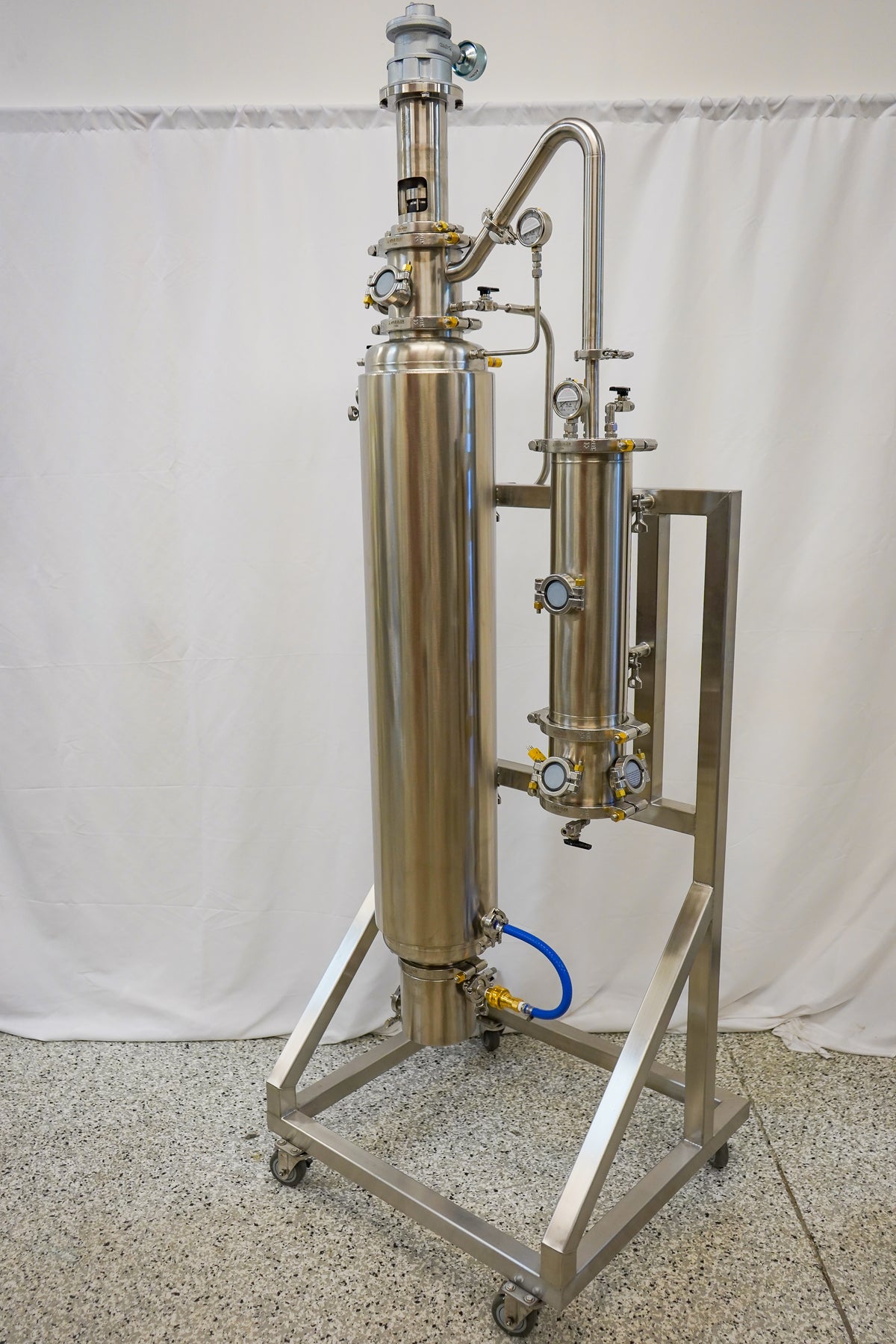

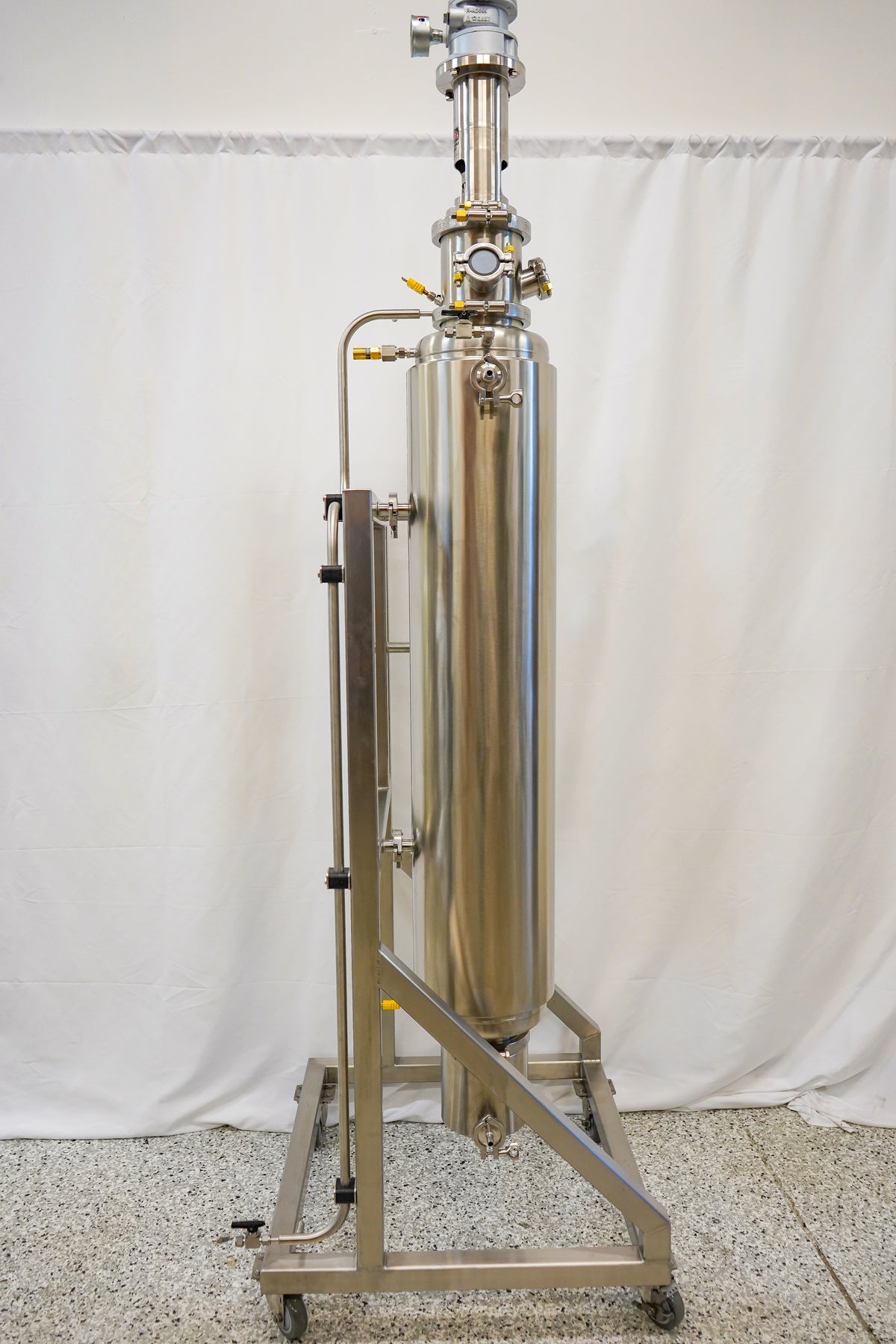

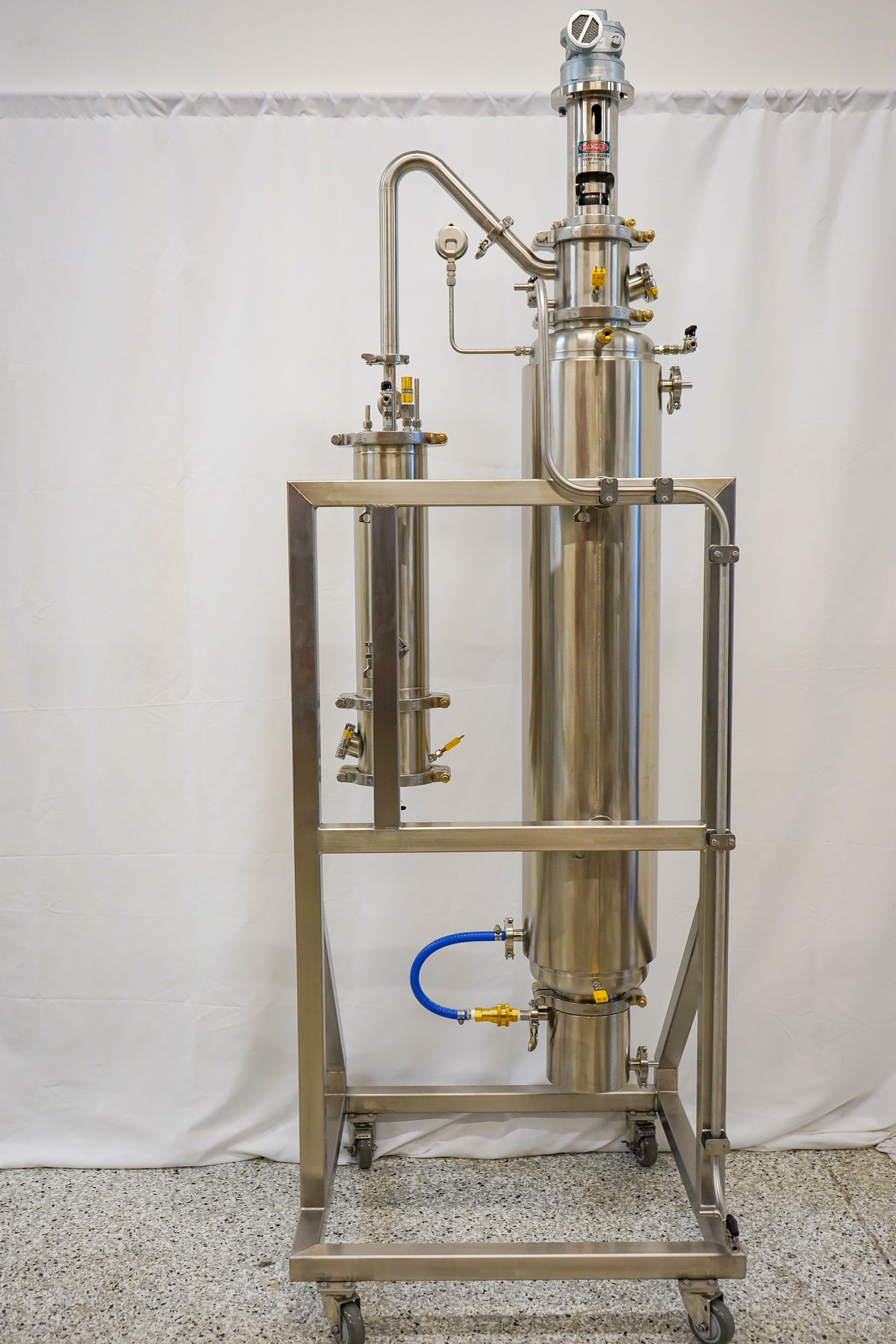

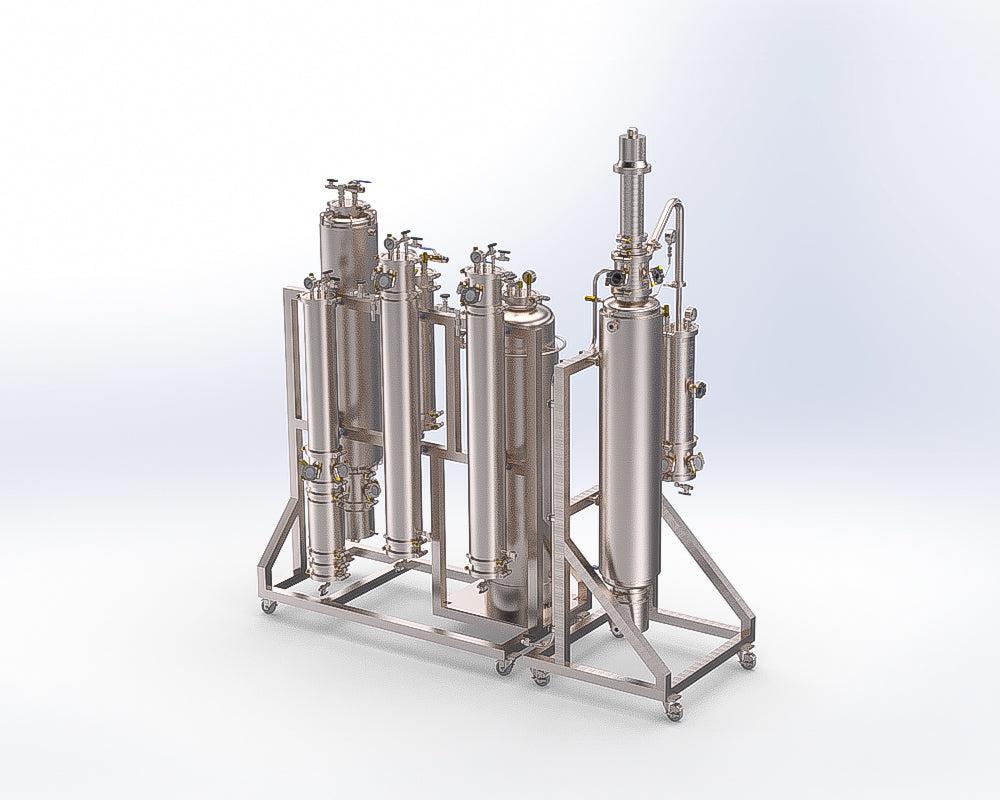

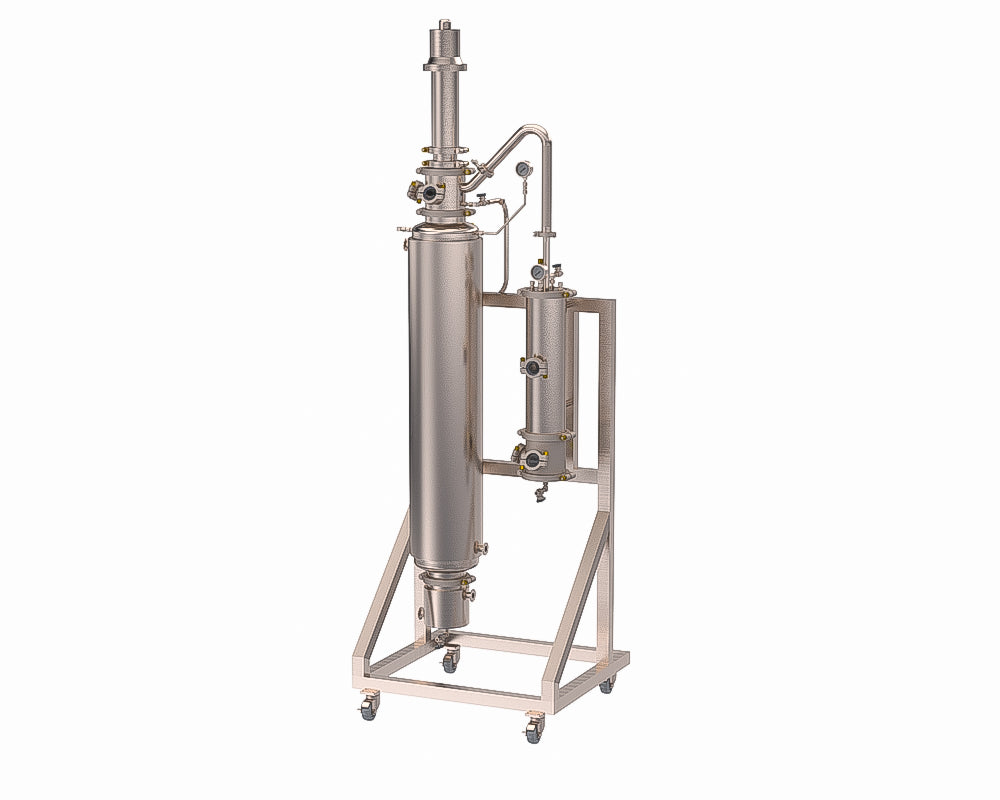

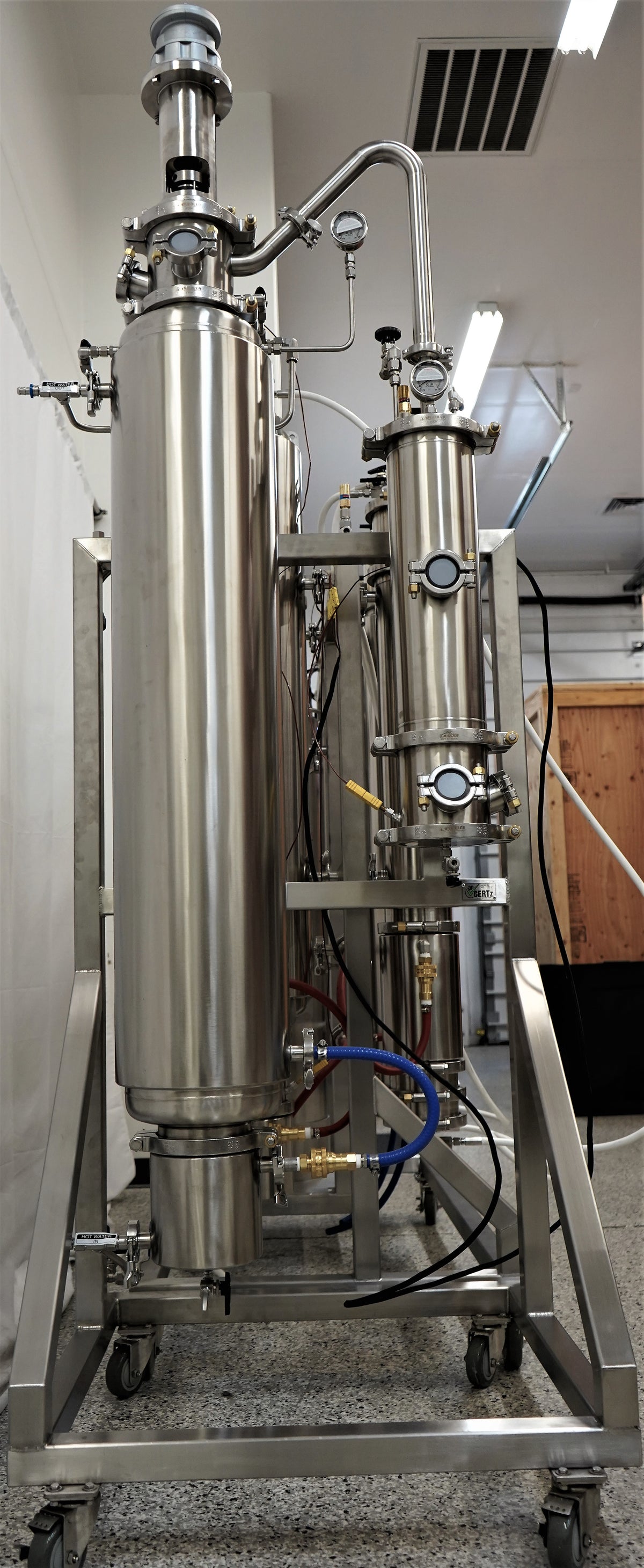

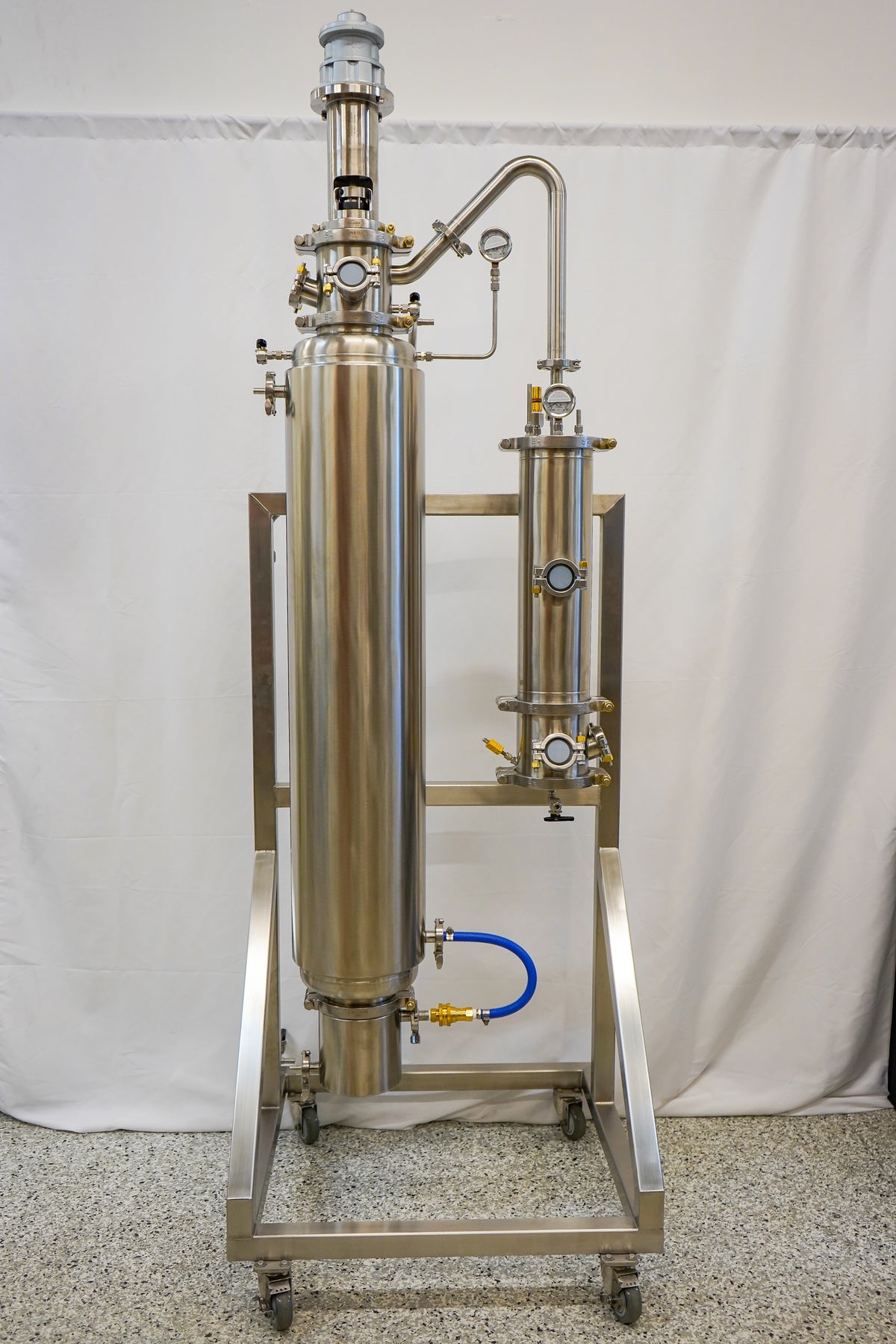

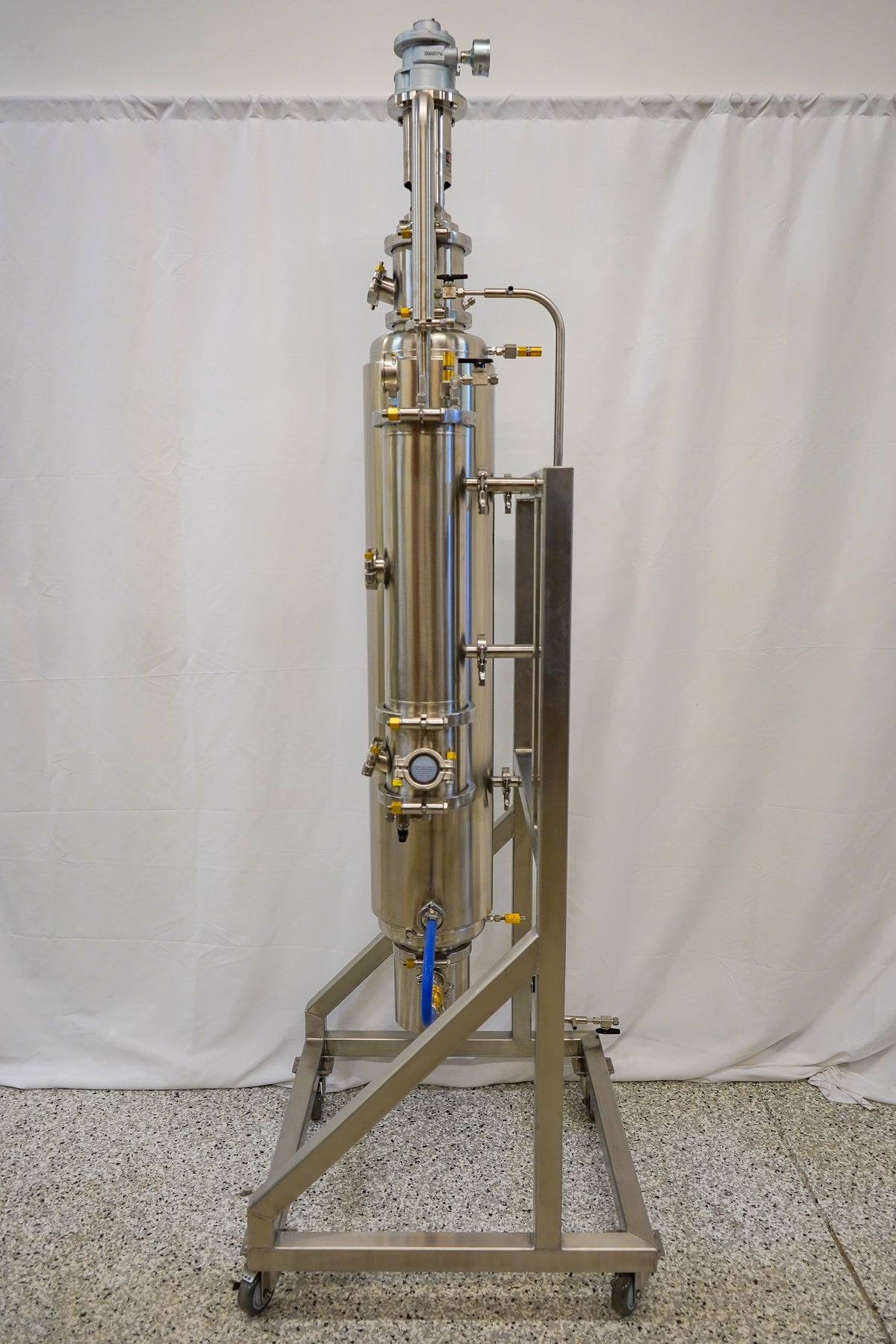

Decarb system created for use with Hydrocarbon or Ethanol extraction. Pressure rated to 100 psi, temperature ranges from -60 C to 140 C. Batch volume is up to 60 gallons; with 50% headspace. Our smaller units pair perfectly with our 20 lb hydrocarbon system. Chilling on the condenser side is via either chiller or LCO2, hot water heater required. Jacketed and heated transfer tube to DeCarb Vessel also available, to help transfer thick, viscous crude into the decarb unit.
This unit is available with or without C1D1 rated pneumatic mixer, with seals rated to 125 psi. Top connection for customer supplied mixer is 6" sanitary connection.
We can fabricate other decarb units if you're looking for larger or smaller batch sizes, or want additional pressure or temperature ratings, feel free to reach out.
Please call for lead times/availability 541-330-6409. Engineered and built in house. 12 week lead time, expedite available with additional charges.
Full ASME systems available as of 1/12/2021. Contact us for details.
N.B.Oler is American Fabricated Stainless steel, made in Bend Or.
