Superlok SBV120H2-S4-LT Ball Valve, 1/4" 316 SS (Swagelok SS-43GS4 cross-reference)

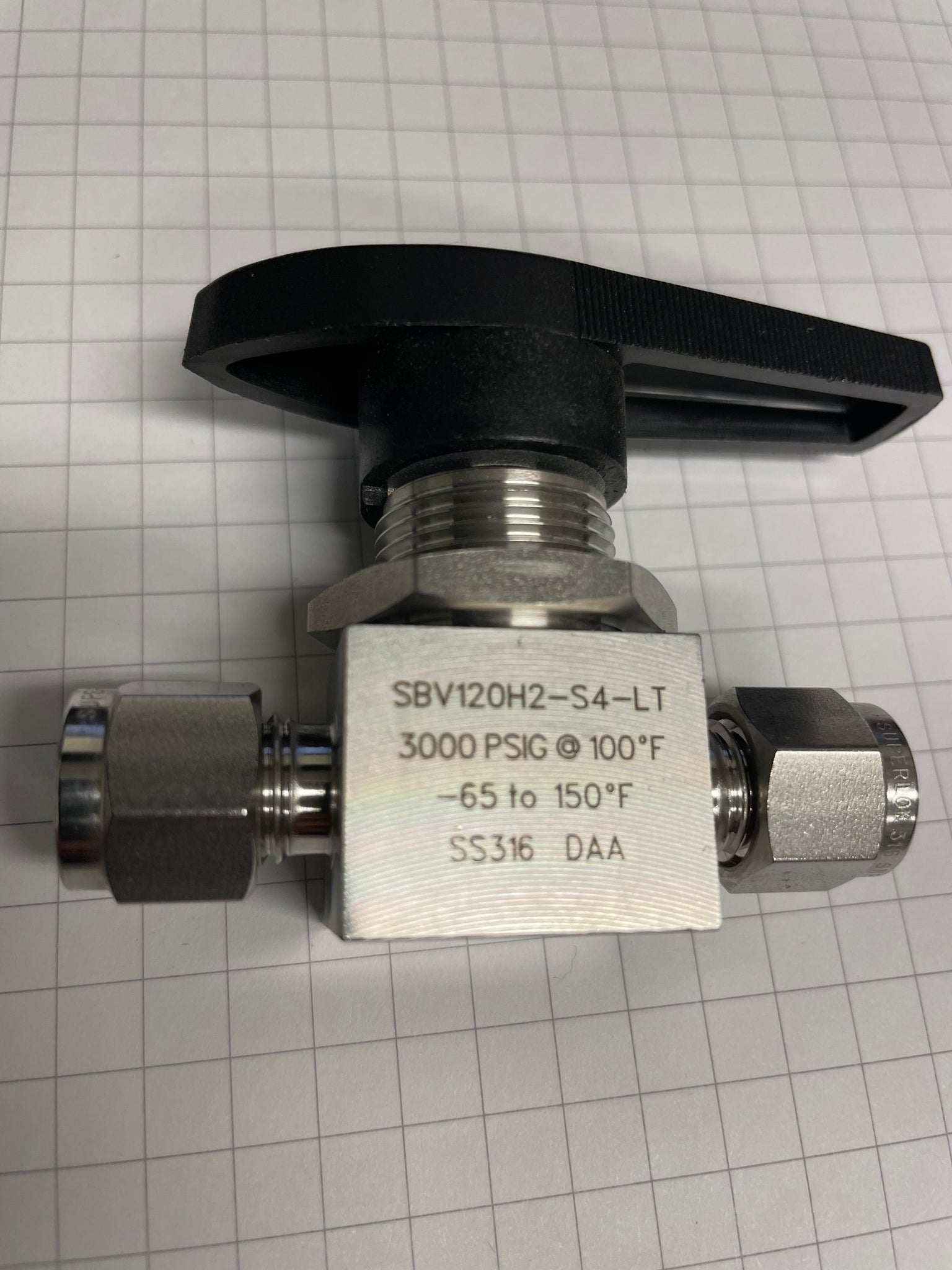

Superlok SBV120H2-S-4 Ball Valve, 1/4″, 316 Stainless

A one-piece 316 stainless ball valve with a quarter-turn handle, for instrument and process lines where a compact shutoff is needed. Superlok publishes Swagelok SS-43GS4 as the equivalent part. Every spec below is taken from Superlok's own SBV120 series catalog, not from a distributor listing.

Specifications, per Superlok catalog

• Material: 316 stainless steel
• Connection: 1/4″ tube OD
• Body: one-piece body, one-piece ball stem
• Port: standard bore, 4.8 mm orifice. Not a full-port valve.
• Cv: 2.4
• Max working pressure: 3,000 psig (206 bar) at 70°F
• Temperature range: 50°F to 150°F (10°C to 65°C) with the standard PTFE seat and packing
• Handle: quarter-turn
• Swagelok equivalent: SS-43GS4, as published by Superlok North America

Read the temperature range before you buy

50°F to 150°F is a narrow window. This valve is not rated for cryogenic or sub-ambient service. If you need a shutoff on a cold line, on LN₂ or LCO₂ service, or anywhere downstream of a chiller, this is the wrong valve and we would rather tell you now than sell it to you. Call 541-330-6409 and we will point you at the right one.

A note on the part number

Superlok's published ordering table does not list an "LT" suffix for this series. We carry it under SBV120H2-S4-LT as supplied to us. The catalog part it matches is SBV120H2-S-4.
