Superlok

Superlok SBV120H2-S4-LT Ball Valve, 1/4" 316 SS, 3000 psi, -65 °F

Superlok SBV120H2-S4-LT Ball Valve, 1/4" 316 SS, 3000 psi, -65 °F

Regular price $65.00 USD
Regular price Sale price $65.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

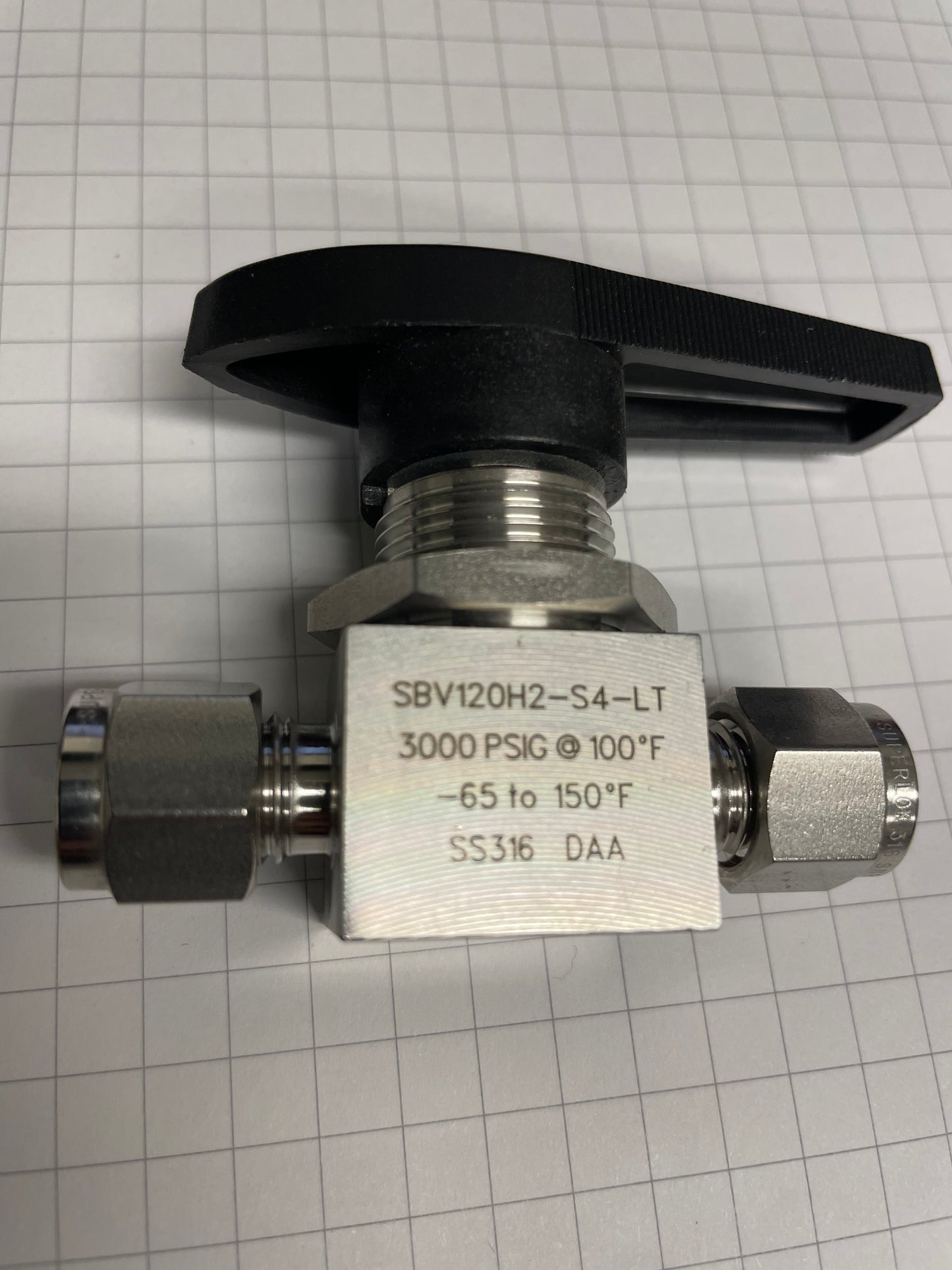

Superlok SBV120H2-S4-LT one-piece ball valve, 1/4 inch tube, 316 stainless, 3000 psig (206 bar) at 100 F (38 C). Rated to -65 F (-54 C). $65.00, fifteen on the shelf.

The cold rating is not on the manufacturer's website, and that is the reason this page exists.

  • The LT in the part number is the low temperature build.
  • Superlok's public catalog lists the standard SBV120H2-S-4 at 50 F to 150 F (10 C to 65 C) and does not list the LT at all.
  • We hold the factory certificate. BMT Co. Ltd, dated 27 January 2021, certifies the Superlok 120 LT series to -65 F (-54 C). Ask and we will send you a copy.

So this one does go on a cold line. Downstream of a chiller, on a recovery circuit, anywhere running below ambient. Upper limit is 150 F (65 C).

Specifications

Part number SBV120H2-S4-LT
Size 1/4 in tube, both ports
Maximum working pressure 3000 psig (206 bar) at 100 F (38 C)
Temperature range -65 F to 150 F (-54 C to 65 C)
Orifice 4.8 mm
Cv 2.4
Bore Standard bore, not full port
Body One-piece 316 stainless, one-piece ball stem

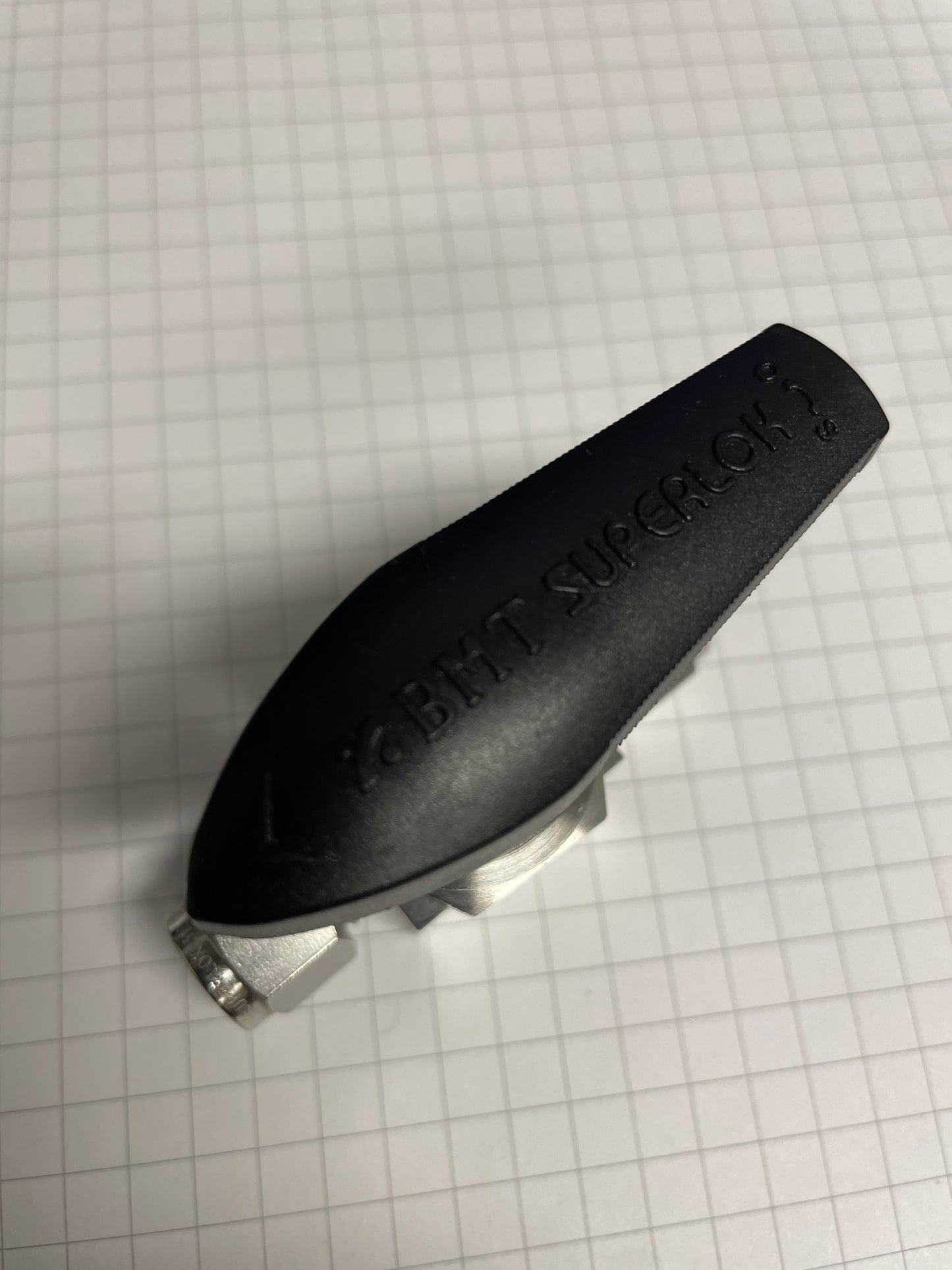

Handle Black, quarter turn
Price $65.00
On hand 15

This one or the SBV210?

SBV120H2-S4-LT SBV210-S
Sizes 1/4 in 3/8, 1/2, 3/4 in
Pressure 3000 psig (206 bar) 1000 psig (69 bar)
Minimum temperature -65 F (-54 C) -65 F (-54 C)
Maximum temperature 150 F (65 C) 450 F (232 C)
Orifice 4.8 mm 7.5 to 12.5 mm

This one if you need 1/4 inch, or if you need 3000 psig (206 bar). The SBV210-S if you need 3/8 inch or larger, or if the line runs hot, because the PEEK seat takes it to 450 F (232 C) where this one stops at 150 F (65 C).

Fitment and the part number

  • Fits 1/4 inch tube compression lines. Superlok publishes Swagelok SS-43GS4 as the equivalent part, and it is visually a clone, so it drops into the same place. We do not stock the Swagelok version.
  • Does not fit tri-clamp, NPT or hose ends. Tube only.
  • Superlok's published ordering table does not list an LT suffix for this series. We carry it as SBV120H2-S4-LT, as supplied to us.

$65.00, fifteen on the shelf in Bend, Oregon.

View full details
Superlok SBV120H2-S4-LT Ball Valve, 1/4" 316 SS, 3000 psi, -65 °F
SBV120H2-S4-LT

Superlok SBV120H2-S4-LT Ball Valve, 1/4" 316 SS, 3000 psi, -65 °F

$65.00IN STOCK

ABOUT THIS PART

Superlok SBV120H2-S4-LT one-piece ball valve, 1/4 inch tube, 316 stainless, 3000 psig (206 bar) at 100 F (38 C). Rated to -65 F (-54 C). $65.00, fifteen on the shelf.

SPECIFICATIONS

SeriesSuperlok SBV120H2, one-piece
Part numberSBV120H2-S4-LT
Body316 stainless, one-piece body and one-piece ball stem
Size1/4 in tube, both ports
Maximum working pressure3000 psig (206 bar) at 100 F (38 C)
Minimum temperature-54 C (-65 F), per BMT Co. Ltd factory certificate, 27 January 2021
Maximum temperature65 C (150 F)
Orifice4.8 mm
Cv2.4
BoreStandard bore, not full port
HandleQuarter-turn, black
Swagelok equivalentSS-43GS4, as published by Superlok North America
NoteThe LT suffix is the low temperature build and does not appear in Superlok's public ordering table
Price$65.00
Built or stockedStocked in Bend

The cold rating is not on the manufacturer's website, and that is the reason this page exists.

  • The LT in the part number is the low temperature build.
  • Superlok's public catalog lists the standard SBV120H2-S-4 at 50 F to 150 F (10 C to 65 C) and does not list the LT at all.
  • We hold the factory certificate. BMT Co. Ltd, dated 27 January 2021, certifies the Superlok 120 LT series to -65 F (-54 C). Ask and we will send you a copy.

So this one does go on a cold line. Downstream of a chiller, on a recovery circuit, anywhere running below ambient. Upper limit is 150 F (65 C).

Specifications

Part number SBV120H2-S4-LT
Size 1/4 in tube, both ports
Maximum working pressure 3000 psig (206 bar) at 100 F (38 C)
Temperature range -65 F to 150 F (-54 C to 65 C)
Orifice 4.8 mm
Cv 2.4
Bore Standard bore, not full port
Body One-piece 316 stainless, one-piece ball stem
Handle Black, quarter turn
Price $65.00
On hand 15

This one or the SBV210?

SBV120H2-S4-LT SBV210-S
Sizes 1/4 in 3/8, 1/2, 3/4 in
Pressure 3000 psig (206 bar) 1000 psig (69 bar)
Minimum temperature -65 F (-54 C) -65 F (-54 C)
Maximum temperature 150 F (65 C) 450 F (232 C)
Orifice 4.8 mm 7.5 to 12.5 mm

This one if you need 1/4 inch, or if you need 3000 psig (206 bar). The SBV210-S if you need 3/8 inch or larger, or if the line runs hot, because the PEEK seat takes it to 450 F (232 C) where this one stops at 150 F (65 C).

Fitment and the part number

  • Fits 1/4 inch tube compression lines. Superlok publishes Swagelok SS-43GS4 as the equivalent part, and it is visually a clone, so it drops into the same place. We do not stock the Swagelok version.
  • Does not fit tri-clamp, NPT or hose ends. Tube only.
  • Superlok's published ordering table does not list an LT suffix for this series. We carry it as SBV120H2-S4-LT, as supplied to us.

$65.00, fifteen on the shelf in Bend, Oregon.

FITS1/4 inch tube compression lines, including cold service down to -54 C (-65 F). Drop-in for the Swagelok SS-43GS4. For 3/8 inch and larger, the SBV210-S with the PEEK seat covers the same cold rating at 1000 psig (69 bar). It does not fit tri-clamp, NPT or hose ends.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Chemical Compatibility: Seals, Gaskets and Stainless →
The seat and seals against your solvent, and the cold end that decides it
Stainless Steel: 304, 316 and 316L →
Why this valve is 316, and how the grade gets proven on paper
Stainless Tubing Burst and Working Pressure Chart →
What the 1/4 in tube either side of this valve is rated to
3P Certz engineering report ECR-250902-R0 →
how components on N.B. Oler builds get certified
BMT Co. Ltd, Certification of Valve Rating, 27 January 2021
the signed factory certificate behind the -65 F (-54 C) figure
Superlok North America, SBV120 Series Ball Valves catalog entry
pressure, orifice, Cv and the 50 F to 150 F (10 C to 65 C) figure published for the standard valve

COMMON QUESTIONS

Is this rated for cold service?

Yes, to -54 C (-65 F). The LT in the part number is the low temperature build. Superlok's public catalog lists the standard SBV120H2-S-4 at 50 F to 150 F (10 C to 65 C) and does not list the LT variant, so you will not find this figure on their site. We hold the factory certificate from BMT Co. Ltd dated 27 January 2021 certifying the 120 LT series to -65 F (-54 C), and we will send you a copy.

Why does the manufacturer's website say 50 F (10 C)?

Because their public listing covers the standard valve, not the LT. The LT is a different build and the factory certified it separately.

What is the Swagelok equivalent?

SS-43GS4, as published by Superlok North America. It is visually a clone and drops into the same place.

Should I buy this or the SBV210?

This one if you need 1/4 inch or you need 3000 psig (206 bar). The SBV210 with the PEEK seat if you need 3/8 inch or larger. Both are rated to -54 C (-65 F).

Is it a full port valve?

No. Standard bore, 4.8 mm orifice, Cv 2.4.

How hot can it go?

65 C (150 F). That figure comes from Superlok's published listing for the standard valve and it is the conservative number, so we publish it rather than guess upward for the LT build.

What does it cost?

$65.00, priced on this page.
