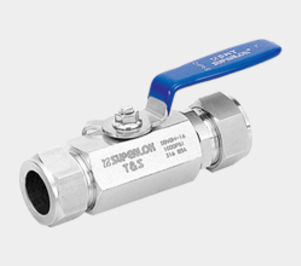

Superlok SBV210-S Ball Valve, PEEK Seat, 3/8" to 3/4", -65 to 450 °F

Superlok SBV210-S Ball Valve, PEEK Seat, 3/8" to 3/4", -65 to 450 °F

Regular price $89.95 USD
Regular price Sale price $89.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Quantity

Superlok SBV210-S two-piece ball valve, 316 stainless with a PEEK seat, in 3/8, 1/2 and 3/4 inch tube. 1000 psig (69 bar), rated -54 °C to 232 °C (-65 °F to 450 °F). From $89.95.

The PEEK seat is why this one goes cold. PTFE-seated valves in this class stop well short of it.

Sizes, part numbers and prices

Size Part number Orifice Price
3/8 in tube SBV210-S6-PE-BH 7.5 mm $89.95
1/2 in tube SBV210-S8-PE-BH 9.0 mm $119.95
3/4 in tube SBV210-S12-PE-BH 12.5 mm $189.95

What it is

  • Two-piece body, 316 stainless
  • Ball 316 stainless to ASTM A276, PEEK seat, PTFE packing
  • Blue bar handle, quarter turn, two-way pattern
  • Superlok tube compression ends on both ports
  • Part number key: S is the tube fitting end, PE is the PEEK seat, BH is the bar handle

Pressure and temperature

Condition Rating
Full pressure window 1000 psig (69 bar) from -54 °C to 21 °C (-65 °F to 70 °F)
Above 21 °C (70 °F) Operates to 232 °C (450 °F), pressure derates with temperature
Certified minimum -54 °C (-65 °F)

Read the first row rather than the second. The full 1000 psi holds cold, which is where this valve belongs. It still works hot, just not at 1000 psi.

Where the -65 °F (-54 °C) comes from

  • A signed certificate from the manufacturer, BMT Co. Ltd, dated 27 January 2021, which names SBV210-S6-PE-BH, SBV210-S8-PE-BH and SBV210-S12-PE-BH individually. Ask and we will send you a copy.
  • 3P Certz engineering report ECR-250902-R0, which lists these valves as SBV210-S6, S8 and S12 on certified N.B. Oler builds. More on that in certifications and compliance.

Fitment

  • Fits 3/8, 1/2 and 3/4 inch Superlok tube compression lines, including cold solvent and recovery service
  • Does not fit tri-clamp, NPT or hose. Tube ends only.
  • The blue handle identifies it. A black handle is the SBV120 family, which is a different valve.

Stocked in Bend, Oregon. We keep every size on the shelf.

View full details
Superlok SBV210-S Ball Valve, PEEK Seat, 3/8" to 3/4", -65 to 450 °F
SBV210-S-6-PE-BH-S316

Superlok SBV210-S Ball Valve, PEEK Seat, 3/8" to 3/4", -65 to 450 °F

$89.95IN STOCK
3 sizes, $89.95 to $189.95
SELECT SIZE

ABOUT THIS PART

Superlok SBV210-S two-piece ball valve, 316 stainless with a PEEK seat, in 3/8, 1/2 and 3/4 inch tube. 1000 psig (69 bar), rated -54 °C to 232 °C (-65 °F to 450 °F). From $89.95.

SPECIFICATIONS

SeriesSuperlok SBV210-S, two-piece
Body316 stainless
Ball316 stainless, ASTM A276
SeatPEEK
PackingPTFE
HandleBlue bar handle, quarter-turn
Sizes3/8 in, 1/2 in, 3/4 in tube
Part numbersSBV210-S6-PE-BH, SBV210-S8-PE-BH, SBV210-S12-PE-BH
Orifice, 3/8 in7.5 mm
Orifice, 1/2 in9.0 mm
Orifice, 3/4 in12.5 mm
Maximum pressure1000 psig (69 bar)
Full pressure window-54 C to 21 C (-65 F to 70 F). Derates above 21 C (70 F)
Operating temperature-54 C to 232 C (-65 F to 450 F)
PatternTwo-way
End connectionSuperlok tube compression, both ports
Part number keyS is the tube fitting end, PE is the PEEK seat, BH is the bar handle
Handle colorBlue. A black handle is a different Superlok family, not this one
Certified asSBV210-S6, S8 and S12 in 3P Certz report ECR-250902-R0
Factory certificateBMT Co. Ltd, 27 January 2021, certifies the 210 series to -65 F (-54 C) by part number
Prices3/8 in $89.95, 1/2 in $119.95, 3/4 in $189.95
Built or stockedStocked in Bend, every size kept on the shelf

The PEEK seat is why this one goes cold. PTFE-seated valves in this class stop well short of it.

Sizes, part numbers and prices

Size Part number Orifice Price
3/8 in tube SBV210-S6-PE-BH 7.5 mm $89.95
1/2 in tube SBV210-S8-PE-BH 9.0 mm $119.95
3/4 in tube SBV210-S12-PE-BH 12.5 mm $189.95

What it is

  • Two-piece body, 316 stainless
  • Ball 316 stainless to ASTM A276, PEEK seat, PTFE packing
  • Blue bar handle, quarter turn, two-way pattern
  • Superlok tube compression ends on both ports
  • Part number key: S is the tube fitting end, PE is the PEEK seat, BH is the bar handle

Pressure and temperature

Condition Rating
Full pressure window 1000 psig (69 bar) from -54 °C to 21 °C (-65 °F to 70 °F)
Above 21 °C (70 °F) Operates to 232 °C (450 °F), pressure derates with temperature
Certified minimum -54 °C (-65 °F)

Read the first row rather than the second. The full 1000 psi holds cold, which is where this valve belongs. It still works hot, just not at 1000 psi.

Where the -65 °F (-54 °C) comes from

  • A signed certificate from the manufacturer, BMT Co. Ltd, dated 27 January 2021, which names SBV210-S6-PE-BH, SBV210-S8-PE-BH and SBV210-S12-PE-BH individually. Ask and we will send you a copy.
  • 3P Certz engineering report ECR-250902-R0, which lists these valves as SBV210-S6, S8 and S12 on certified N.B. Oler builds. More on that in certifications and compliance.

Fitment

  • Fits 3/8, 1/2 and 3/4 inch Superlok tube compression lines, including cold solvent and recovery service
  • Does not fit tri-clamp, NPT or hose. Tube ends only.
  • The blue handle identifies it. A black handle is the SBV120 family, which is a different valve.

Stocked in Bend, Oregon. We keep every size on the shelf.

FITS3/8, 1/2 and 3/4 inch Superlok tube compression lines on hydrocarbon and ethanol systems, including cold service down to -54 C (-65 F). This is the valve specified as SBV210-S6, S8 and S12 on N.B. Oler certified builds. It does not fit tri-clamp, NPT or hose ends.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Chemical Compatibility: Seals, Gaskets and Stainless →
The PEEK seat and the seals against your solvent, and the cold end that decides it
Stainless Steel: 304, 316 and 316L →
Why this valve is 316, and how the grade gets proven on paper
Stainless Tubing Burst and Working Pressure Chart →
What the tube either side of this valve is rated to
3P Certz engineering report ECR-250902-R0, Appendix A, items 7, 8 and 9 →
the report that names these valves on certified N.B. Oler builds
BMT Co. Ltd, Certification of Valve Rating, 27 January 2021
the signed factory certificate behind the -65 F (-54 C) figure
Superlok North America, SBV210 Series Ball Valves series sheet
orifice, materials and the 1000 psig at 70 F (21 C) rating

COMMON QUESTIONS

Why the PEEK seat instead of PTFE?

PEEK holds where PTFE does not. The PEEK seat takes this valve to -54 C to 232 C (-65 F to 450 F), which is what lets it sit downstream of a chiller or on a cold solvent line.

Can I use this on a cold line?

Yes. That is what it is for. Rated to -54 C (-65 F), and that rating is backed by a signed certificate from the manufacturer, BMT Co. Ltd, dated 27 January 2021, which names SBV210-S6-PE-BH, S8 and S12 individually. The same figure appears in 3P Certz engineering report ECR-250902-R0 and in Superlok North America's published catalog.

How do I know it is the right valve?

The SBV210 has a blue handle. If the valve in your hand has a black handle it is a different Superlok family, and the part number will start SBV120 rather than SBV210.

Does it hold 1000 psi at every temperature?

No. The full 1000 psig (69 bar) holds from -54 C (-65 F) up to 21 C (70 F). The valve operates to 232 C (450 F) but the pressure rating comes down as temperature rises. On a cold line you have the full number.

What is the orifice?

7.5 mm on the 3/8 inch, 9.0 mm on the 1/2 inch, 12.5 mm on the 3/4 inch.

Is this the valve on my N.B. Oler system?

If your system is a certified N.B. Oler build, yes. It appears in the certification report as SBV210-S6, S8 or S12 depending on the line size.

Is it a full port valve?

No. Orifice is smaller than the tube bore in every size. The figures are above.

Do you keep all three sizes in stock?

Yes. We keep every size on the shelf in Bend.

What does it cost?

3/8 inch $89.95, 1/2 inch $119.95, 3/4 inch $189.95, priced on this page.
