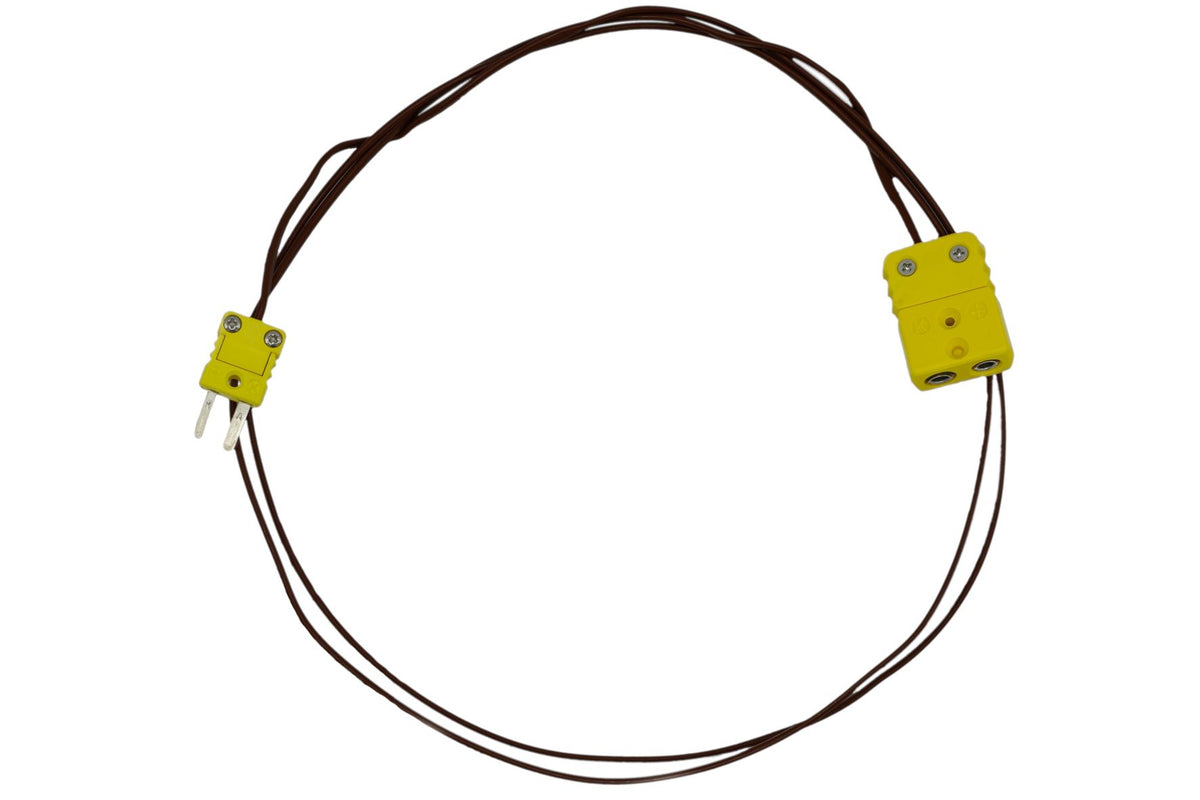

K-to-Mini-K Thermocouple Lines – Engineered for Precision, Built for Compatibility

The K-to-Mini-K Thermocouple Lines from N.B. Oler are designed to provide reliable, accurate temperature measurement in systems requiring compact, high-performance connections. These lines connect standard type-K thermocouple elements to mini-K connectors, combining full thermocouple accuracy with flexible installation in tight or compact spaces. Constructed with thermocouple-grade materials, the wire and connectors deliver stability, durability, and excellent thermal signal integrity—even under frequent use. Whether used in extraction systems, process control, or heating equipment, these lines give operators precise data and dependable performance.

Key Features

1. Type K Calibration
Uses Chromel-Alumel wire to maintain the wide temperature range, sensitivity, and robustness of a standard type-K thermocouple.

2. Mini-K Connector Compatibility
Designed to terminate into miniature two-pin flat (mini) type-K plugs or jacks, consistent with ANSI/IEC standards.

3. Durable Insulation Options
The cable is available with insulation suited to high temperatures and industrial use, helping preserve signal quality.

4. Fast Response
Thin conductors and optimized construction enable quick thermal response — critical for dynamic systems.

5. Flexible Lengths
Offered in multiple standard lengths to suit different system layouts and installation requirements.

6. Color-Coded Polarity
The positive (Chromel) and negative (Alumel) lead wires use correct thermocouple color codes for error-free installation.

Product Specifications

• Thermocouple Type: Type K (Chromel / Alumel)
• Connector: Miniature “Mini-K” two-pin flat connector
• Wire Material: Base-metal thermocouple wire (standard K alloy)
• Insulation: High-temperature-rated insulation suited for process environments
• Operating Temperature Range: Matches typical Type-K thermocouple range: –200 °C to +1,260 °C
• Wire Gauge: Supports typical mini-connector wiring sizes
• Termination: Pre-assembled with mini connector on one end, bare or stripped on the other

Benefits

1. Compact Connection for Tight Spaces
Mini connectors save space and simplify installations in compact or crowded environments.

2. Reliable Data Transmission
Using true Type-K wire ensures accurate temperature readings and dependable performance over time.

3. Durable and Reusable
The wire and connectors are built to withstand repeated use, reducing the risk of failure or drift.

4. Reduced Wiring Errors
Color-coded leads and standard connector format help prevent polarity mistakes and improve safety.

5. Fast Installation
Pre-terminated lines minimize setup time, making it faster to deploy or replace sensor connections.

6. Wide Application Compatibility
Suitable for many types of systems, including extraction, lab, process control, and heating equipment.
