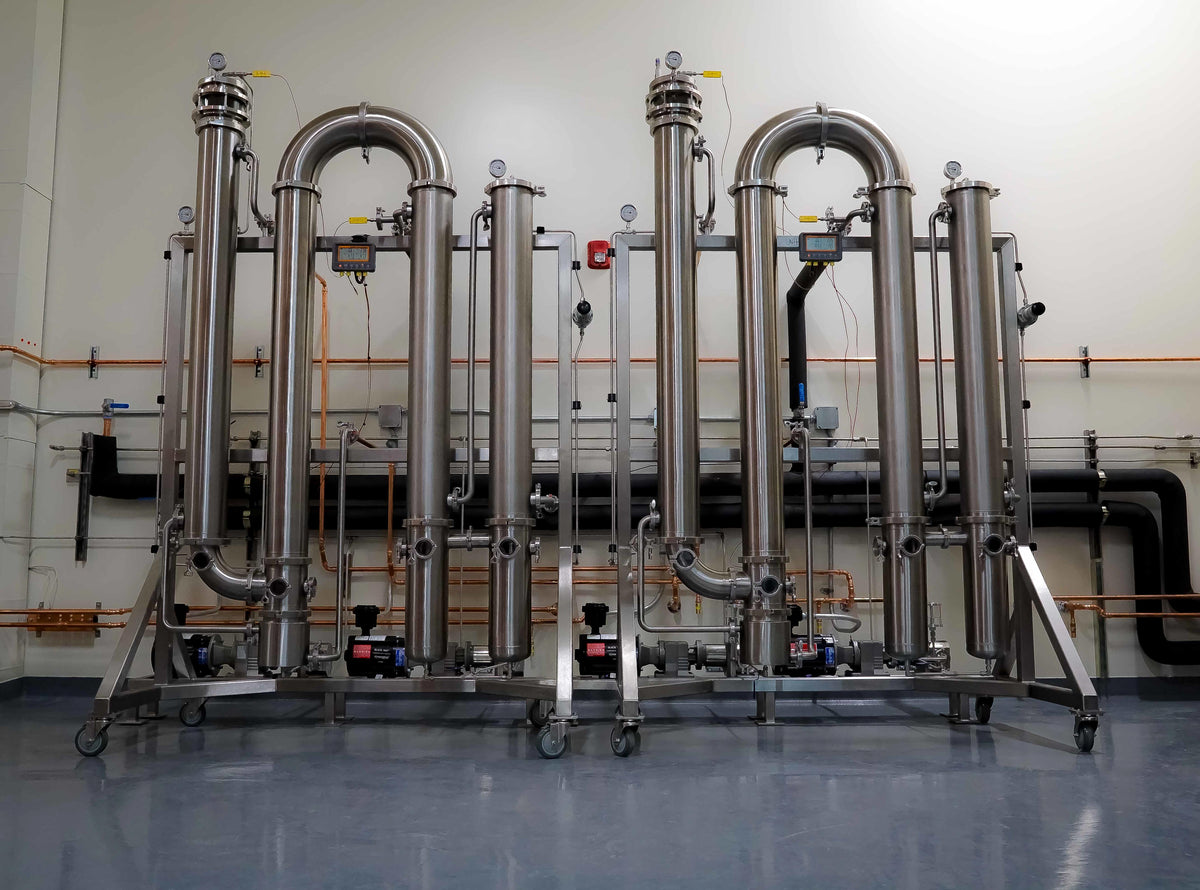

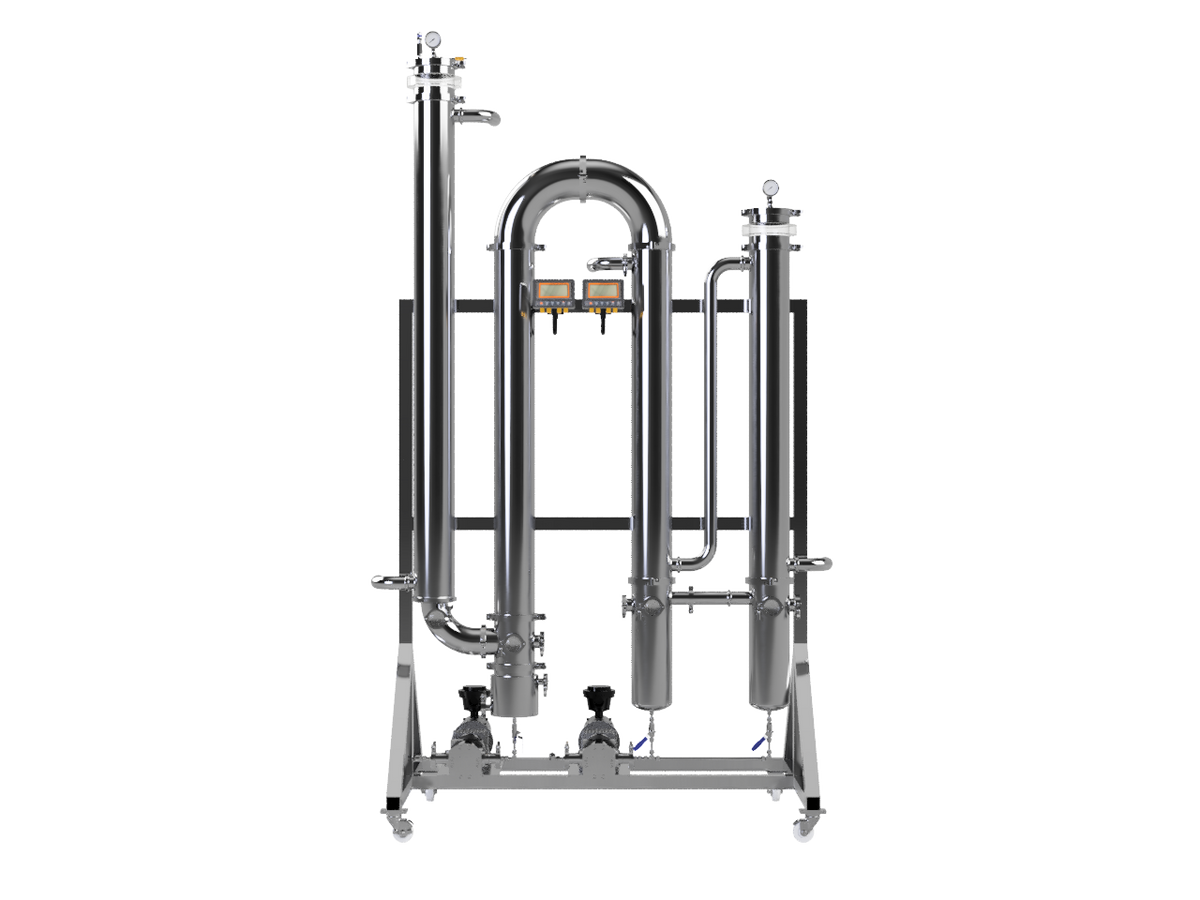

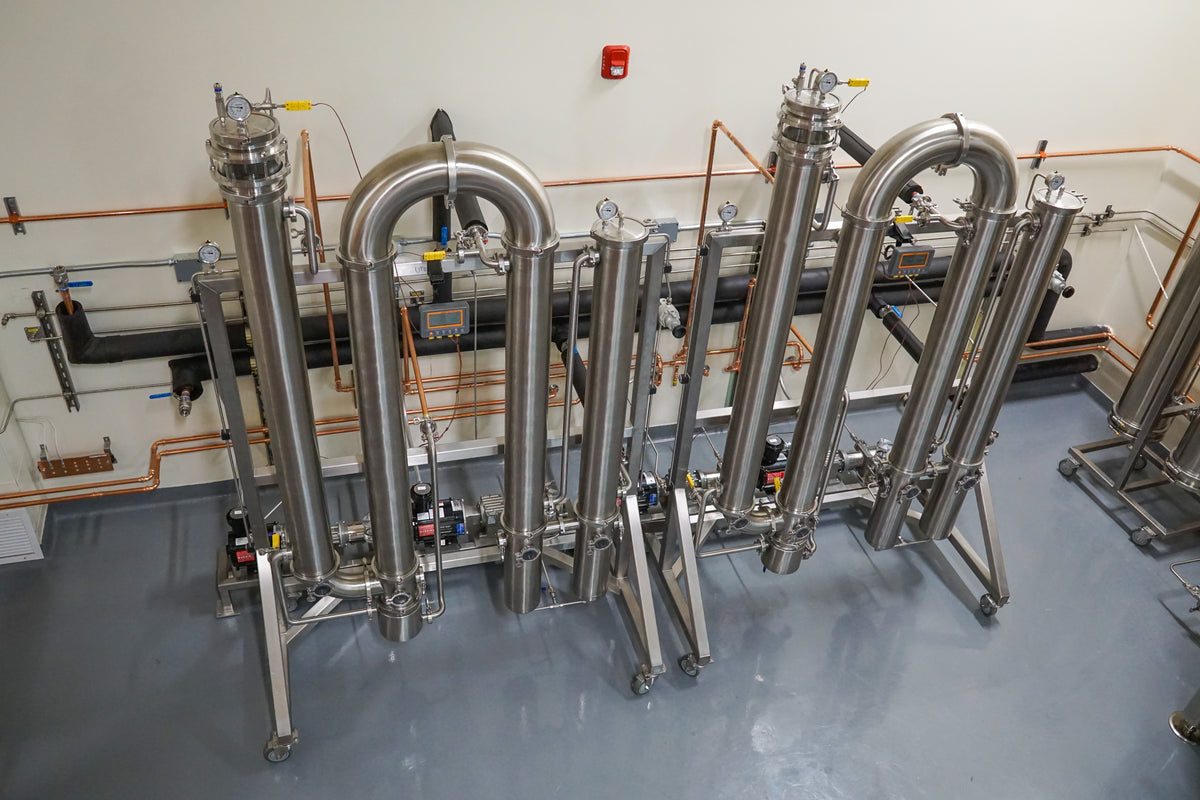

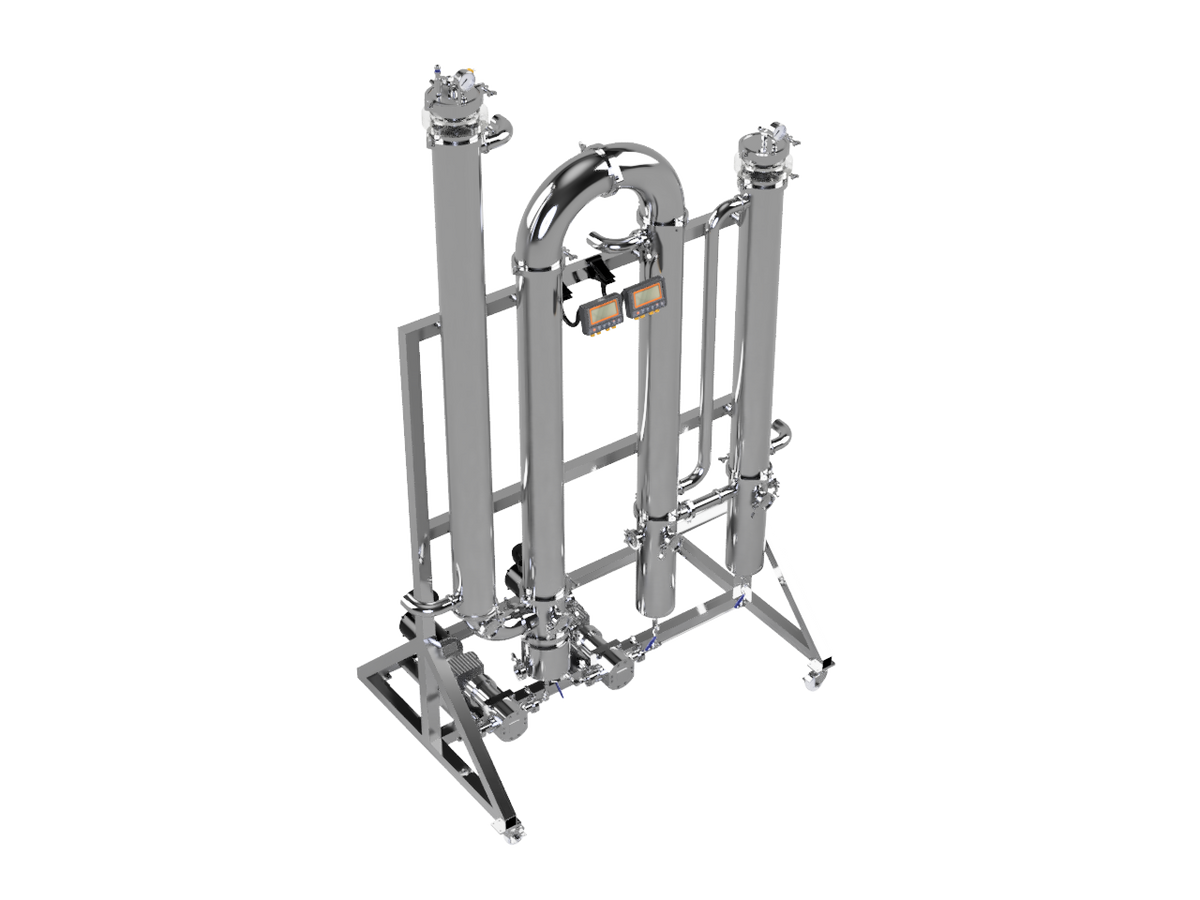

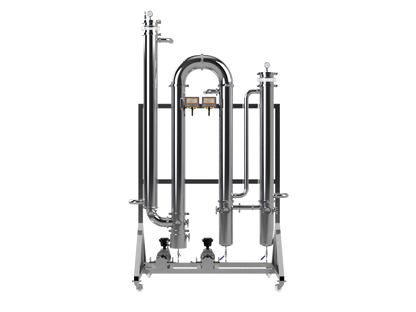

Falling Film Evaporator, Ethanol Recovery, 60 and 100 GPH
ABOUT THIS PART
Falling film evaporator for continuous ethanol recovery, in two sizes, both manual. 60 gallons per hour, $180,000. 100 gallons per hour, $260,000. Pick the size in the dropdown, both are priced on this page. Measured ethanol recovery is about 94 percent, which is better than the 90 percent we quote on hydrocarbon solvent recovery.
SPECIFICATIONS
| Price, 60 gal/hr | $180,000 |
|---|---|
| Price, 100 gal/hr | $260,000 |
| SKU, 60 gal/hr | NB-FFE-60 |
| SKU, 100 gal/hr | NB-FFE-100 |
| Sizes offered | Two, 60 and 100 gallons per hour |
| Operation | Manual only. No automated version is offered |
| Ethanol recovery | About 94 percent, measured |
| Column | 6 in, heated bowl base |
| Condensers | Heated condenser, chilled re-condenser, chilled terpene trap |
| Vacuum pump | Witte or Welch |
| Required chiller | 30 hp, 0 degrees F (-18 C), 480 V three phase. Not included |
| Required boiler | 18 to 24 kW at 220 V, three phase recommended. Not included |
| Footprint | About 60 in long x 38 in wide x 90 in tall |
| Crate, both sizes | 48 in wide x 72 in long x 90 in tall |
| Shipping weight, both sizes | 2,000 lb |
| Certification | All 50 states. Not certified for Canada |
| Shipping | LTL freight, 2,000 lb crate. Freight is quoted and invoiced after the crate is measured |
| Lead time | 20 weeks, both sizes |
This is the step up from a rotary evaporator. A rotovap runs a batch at a time and needs an operator standing over it. A falling film runs continuously at 60 or 100 gallons an hour, which is where the labor saving comes from.
We do not offer an automated version. Automating it costs a great deal and does not pay for itself, so both sizes are manual by design.
WHICH SIZE
| 60 gal/hr | 100 gal/hr | |
| Price | $180,000 | $260,000 |
| SKU | NB-FFE-60 | NB-FFE-100 |
| Operation | Manual | Manual |
| Ethanol recovery | About 94 percent, measured | About 94 percent, measured |
| Column | 6 in, with heated bowl base | 6 in, with heated bowl base |
| Condensers | Heated condenser, chilled re-condenser, chilled terpene trap | Heated condenser, chilled re-condenser, chilled terpene trap |
| Vacuum pump | Witte or Welch | Witte or Welch |
| Footprint | About 60 in long x 38 in wide x 90 in tall | About 60 in long x 38 in wide x 90 in tall |
| Crate | 48 in wide x 72 in long x 90 in tall | 48 in wide x 72 in long x 90 in tall |
| Shipping weight | 2,000 lb | 2,000 lb |
| Lead time | 20 weeks | 20 weeks |
| Certification | All 50 states. Not certified for Canada | All 50 states. Not certified for Canada |
Both sizes run the same utilities, the same footprint and the same crate. The 100 moves 67 percent more ethanol per hour for 44 percent more money, so if your volume is anywhere near the top of what a 60 can carry, the larger one is the cheaper gallon. It is slightly taller than our 20 LB hydrocarbon system, so check your ceiling height and your door before you order either. The crate is 48 in wide x 72 in long x 90 in tall and weighs 2,000 lb on both sizes, which is the figure to measure your doorway and your dock against.
BUILT, NOT RESOLD
- N.B. Oler builds the entire evaporator. Every stainless part, the column, the heated condenser, the chilled re-condenser, the terpene trap and the rack, is fabricated in our own shop in Bend, Oregon.
- Gaskets and seals are purchased parts and are not represented as ours.
- The vacuum pump is a Witte or a Welch, selected at build.
UTILITIES YOU MUST SUPPLY
Neither price includes utilities. These are hard requirements, not suggestions, and undersizing either one is the most common reason a falling film underperforms.
| Chiller | 30 horsepower, capable of 0 degrees F (-18 C), on 480 V three phase. Not included. |
| Boiler or hot water unit | 18 to 24 kW at 220 V. Three phase recommended, single phase will probably run it. Not included. |
| Also not included | Miscellaneous fittings and the interconnect to your existing plumbing |
LEAD TIME AND TERMS
- 20 weeks from paid order to shipment. Made to order in both sizes.
- Paid in full before it ships. We do not offer net 30 or purchase order terms.
- Ships LTL freight, in a crate 48 in wide x 72 in long x 90 in tall weighing 2,000 lb on both sizes. Freight is quoted and invoiced after the crate is measured, not charged at checkout.
ALSO WORTH KNOWING
- Certified in all 50 states. It is not certified for Canada, so do not order it for a Canadian facility.
- Most of the units we have in the field are doing CBD work.
- If you are recovering hydrocarbon rather than ethanol, this is the wrong machine. Passive recovery on a 20 LB or 40 LB Double Barrel system does that job.
- Dry the ethanol with 3A molecular sieve beads, not 4A. 4A adsorbs the ethanol molecule itself.
| FITS | Continuous ethanol recovery at 60 or 100 gallons per hour, as the step up from a rotary evaporator. Both sizes are manual, no automated version is offered. Requires a customer supplied 30 hp chiller capable of 0 F (-18 C) on 480 V three phase and an 18 to 24 kW boiler at 220 V. Certified in all 50 states, not certified for Canada. Not for hydrocarbon recovery, which is done passively on the extraction system. |
|---|
▦ IN YOUR MANUAL
This part appears in the operator manual that ships with your system. The QR code there links to this page.
◈ REFERENCE FOR THIS PART
COMMON QUESTIONS
What sizes do you build?
Two, and both are manual: 60 gallons per hour at $180,000 and 100 gallons per hour at $260,000. Both are priced on this page, pick the size in the dropdown.
Which size should I buy?
Both run the same utilities, the same footprint and the same crate. The 100 moves 67 percent more ethanol per hour for 44 percent more money, so if your volume is near the top of what a 60 can carry, the 100 is the cheaper gallon.
Do you offer an automated version?
No. Automation on a falling film is very expensive and does not pay for itself, so we do not offer it.
What recovery should I expect?
About 94 percent on ethanol. That is a measured number, not a brochure figure, and it is better than the 90 percent we quote for hydrocarbon solvent recovery.
What chiller do I need?
A 30 horsepower chiller capable of 0 degrees F, which is -18 C, on 480 V three phase. It is not included and undersizing it is the usual reason a falling film underperforms.
What boiler do I need?
18 to 24 kW at 220 V. Three phase is what we recommend, single phase will probably run it. Not included.
How much floor space?
About 60 in long by 38 in wide by 90 in tall on both sizes, slightly taller than our 20 LB hydrocarbon system. The crate is 48 in wide by 72 in long by 90 in tall, so check the doorway as well as the ceiling.
Will it fit through my door?
The crate is 48 in wide x 72 in long x 90 in tall and weighs 2,000 lb on both sizes. Measure your narrowest doorway against the 48 in width and your ceiling against the 90 in height before you order.
What vacuum pump comes with it?
A Witte or a Welch, selected at build.
Can I buy one in Canada?
No. It is certified in all 50 states but not for Canada.
What is the lead time?
20 weeks on both sizes. Made to order.
How does it ship?
LTL freight, in a crate 48 in wide x 72 in long x 90 in tall weighing 2,000 lb on both sizes. Freight is quoted and invoiced after the crate is measured, and nothing is charged at checkout.
How is this better than a rotary evaporator?
A rotovap runs one batch at a time with an operator standing over it. This runs continuously at 60 or 100 gallons an hour, and the saving is labor.
Which molecular sieve dries the ethanol?
3A, not 4A. 4A adsorbs the ethanol molecule itself.
Do you offer net 30 or purchase order terms?
No. Systems are paid in full before they ship.
