4" Sight Glass Spool, 6" Tall, Two 2" Ports and Thermocouple Port

4" Sight Glass Spool, 6" Tall, Two 2" Ports and Thermocouple Port

Regular price $300.00 USD
Regular price Sale price $300.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

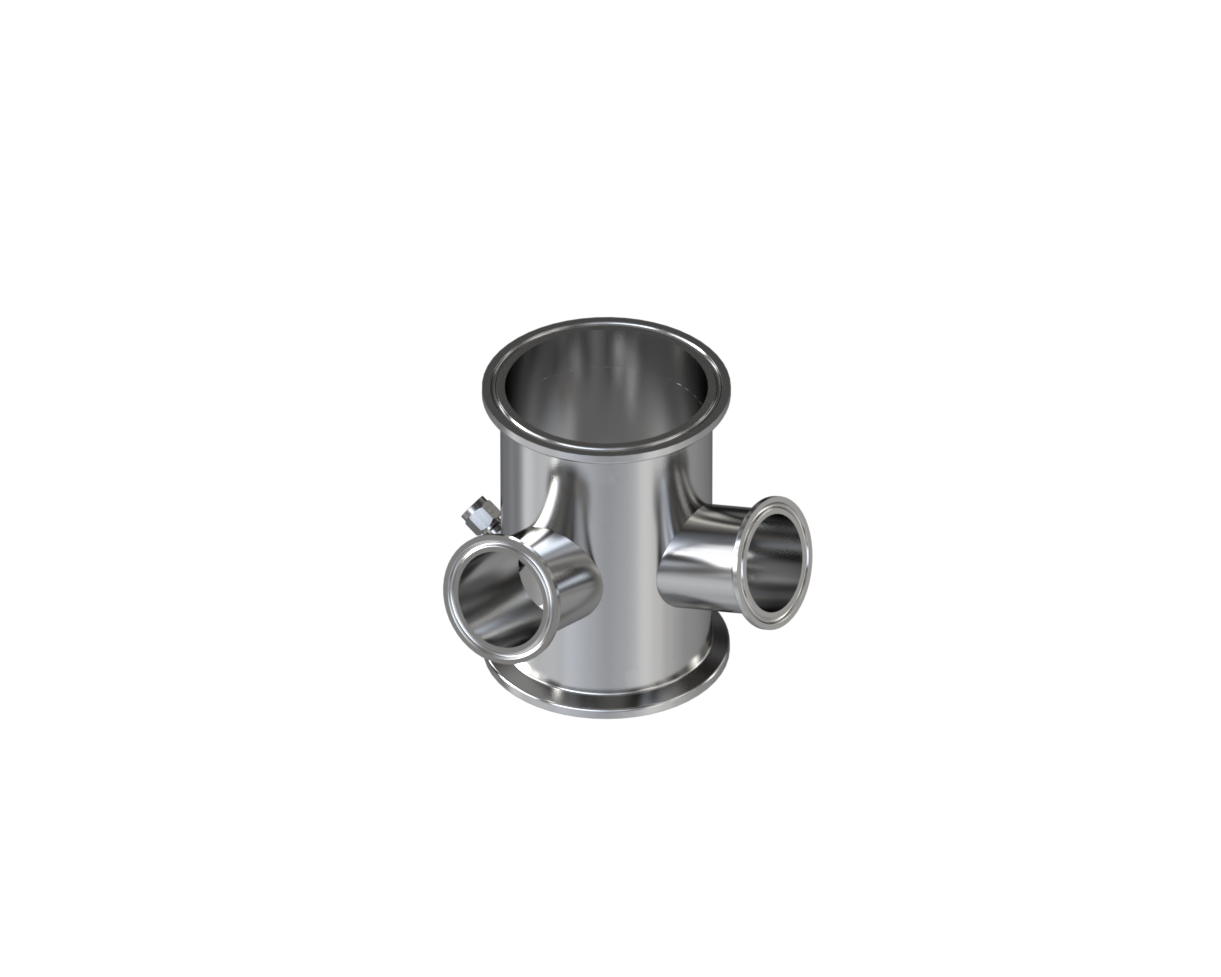

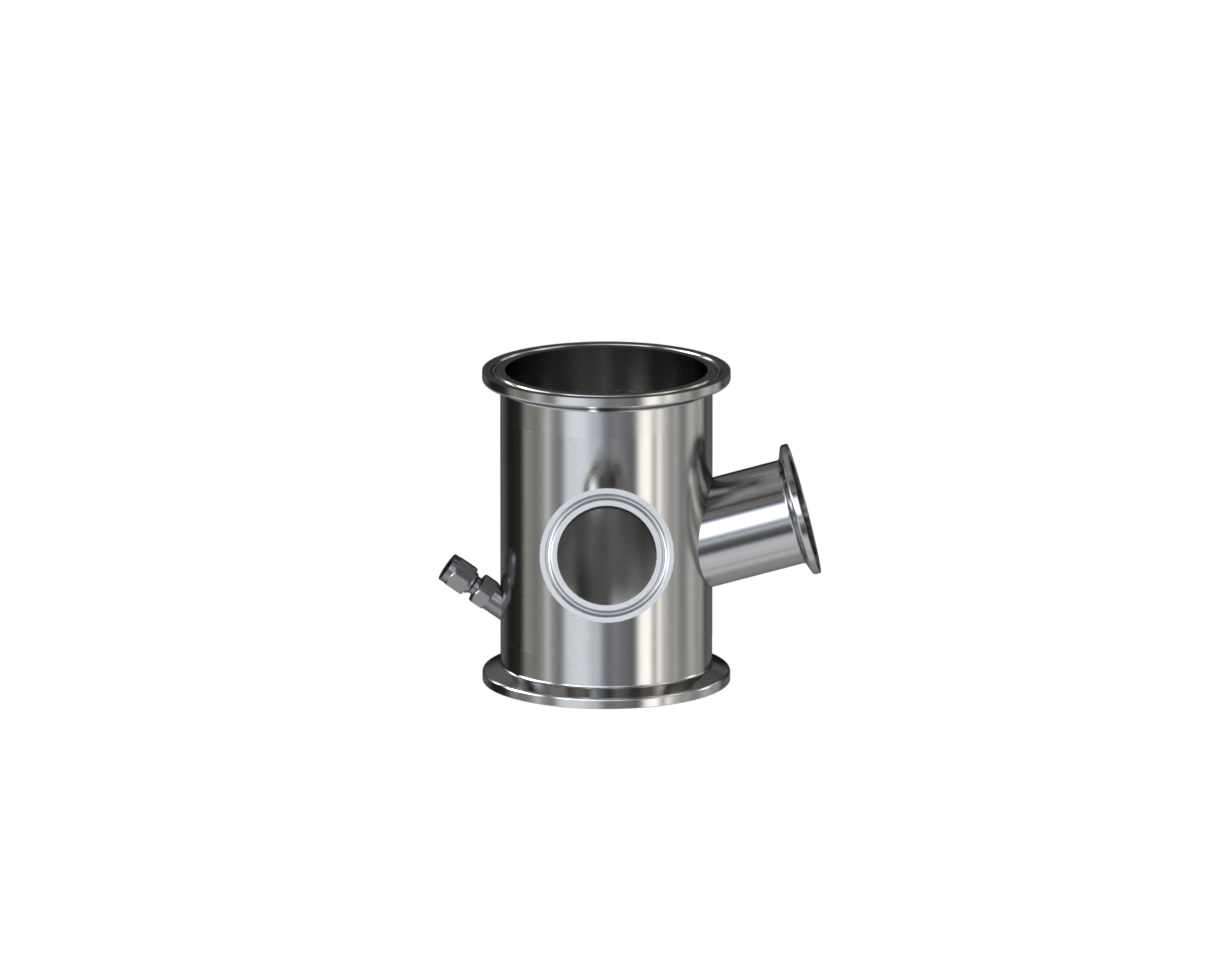

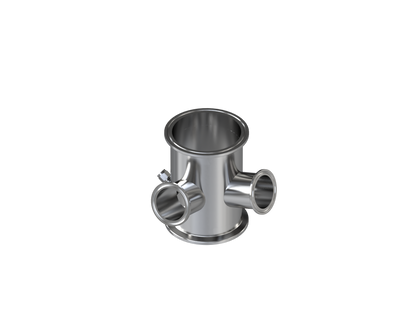

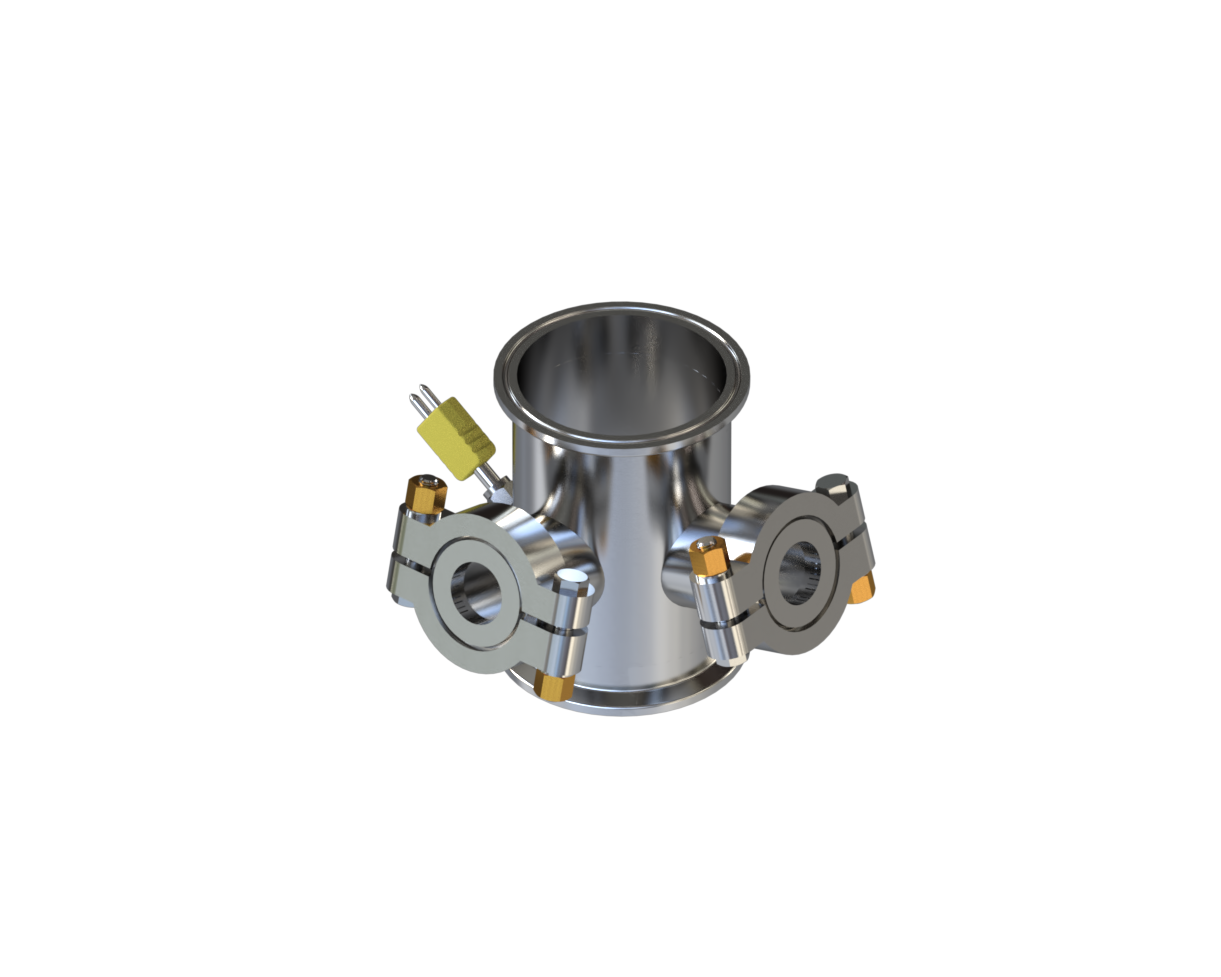

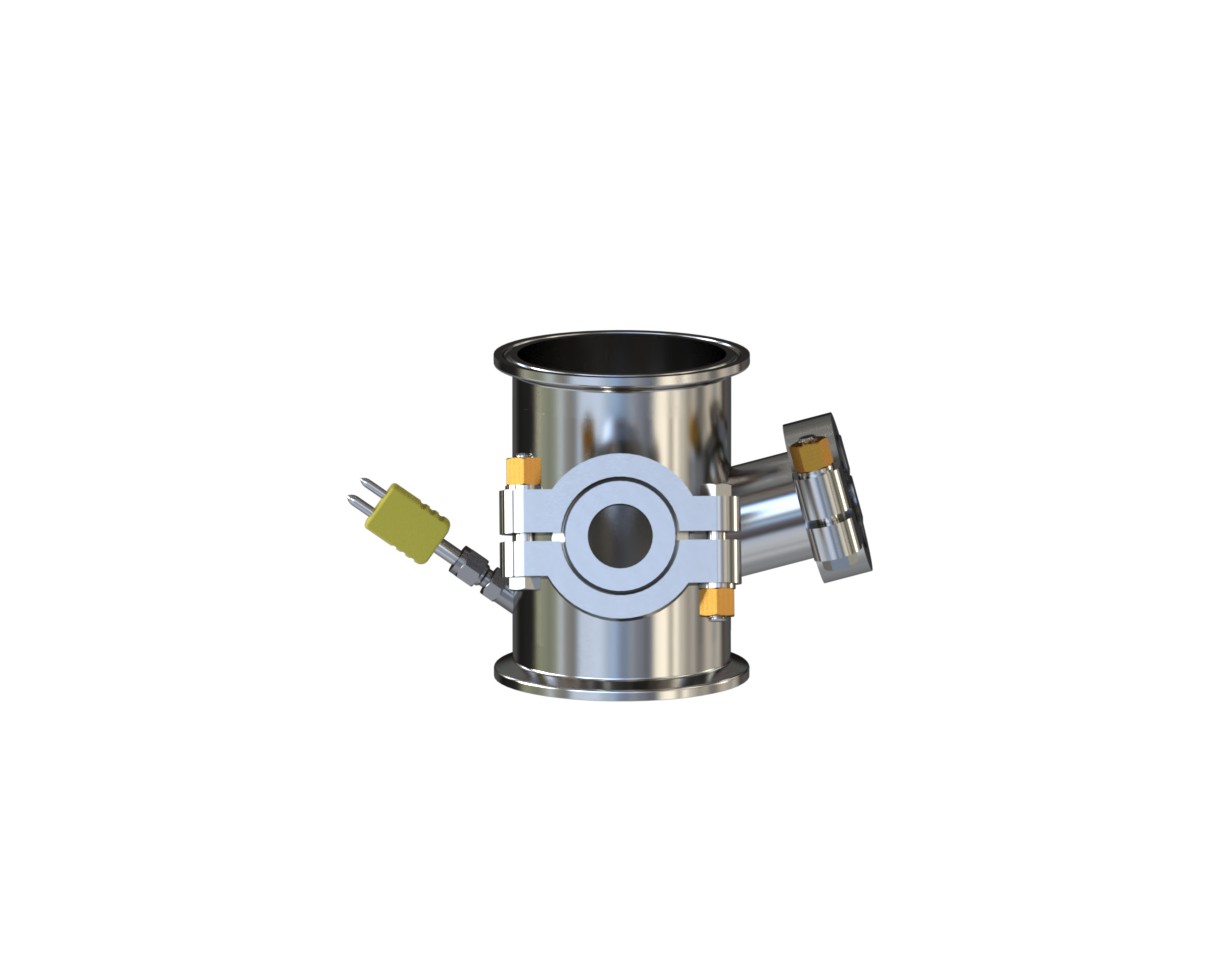

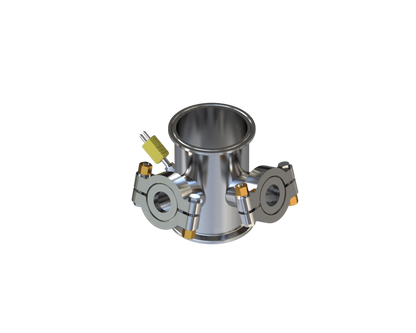

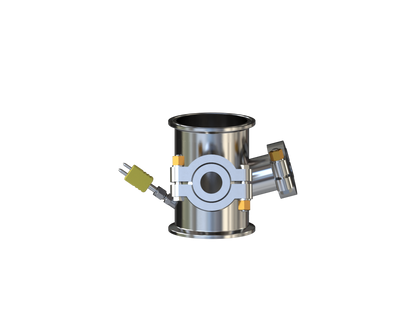

A 4 inch diameter by 6 inch tall 304L stainless spool with two 2 inch sight ports and a 1/4 inch thermocouple port, built in house in Bend, Oregon. $300.00.

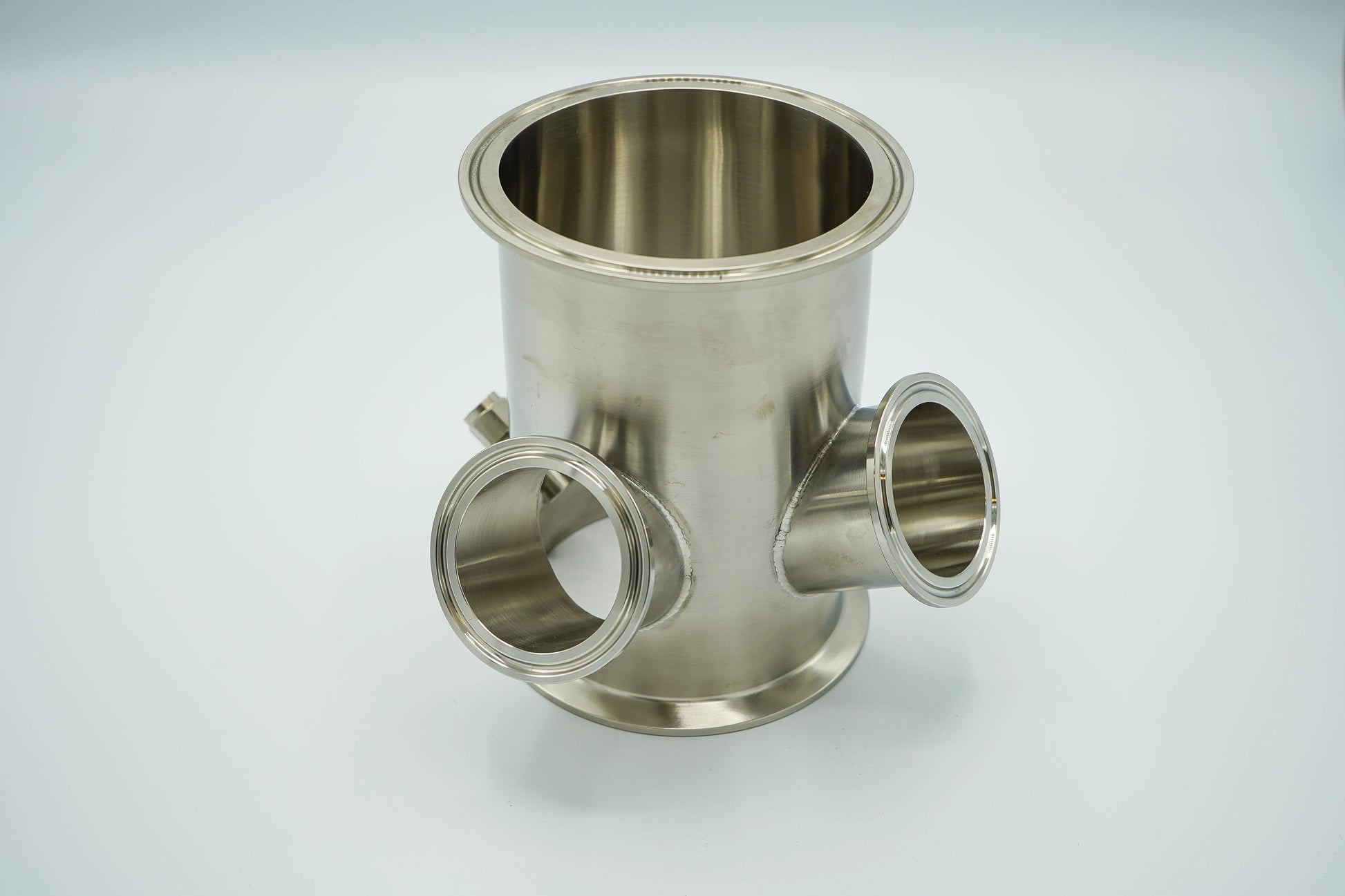

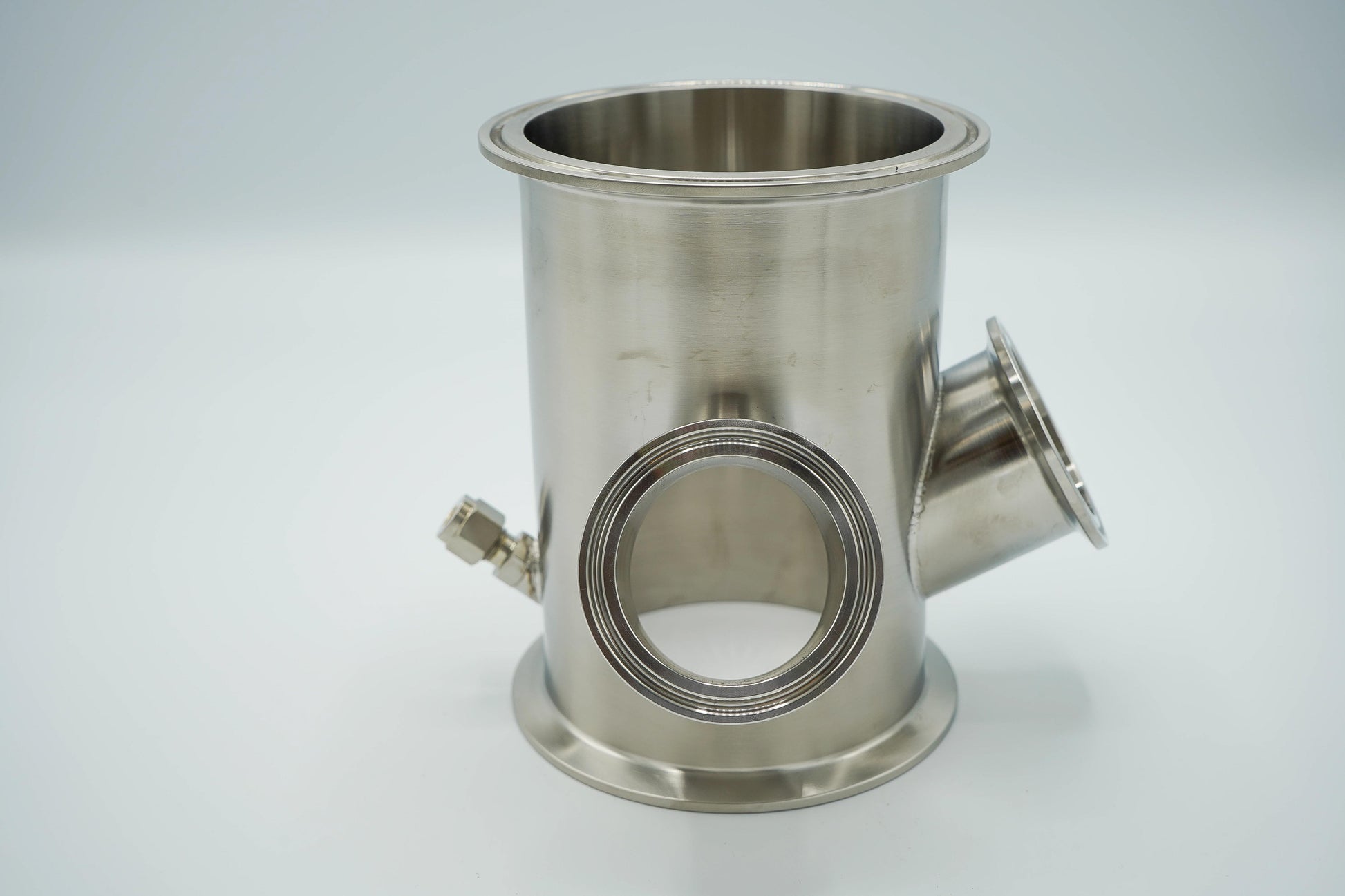

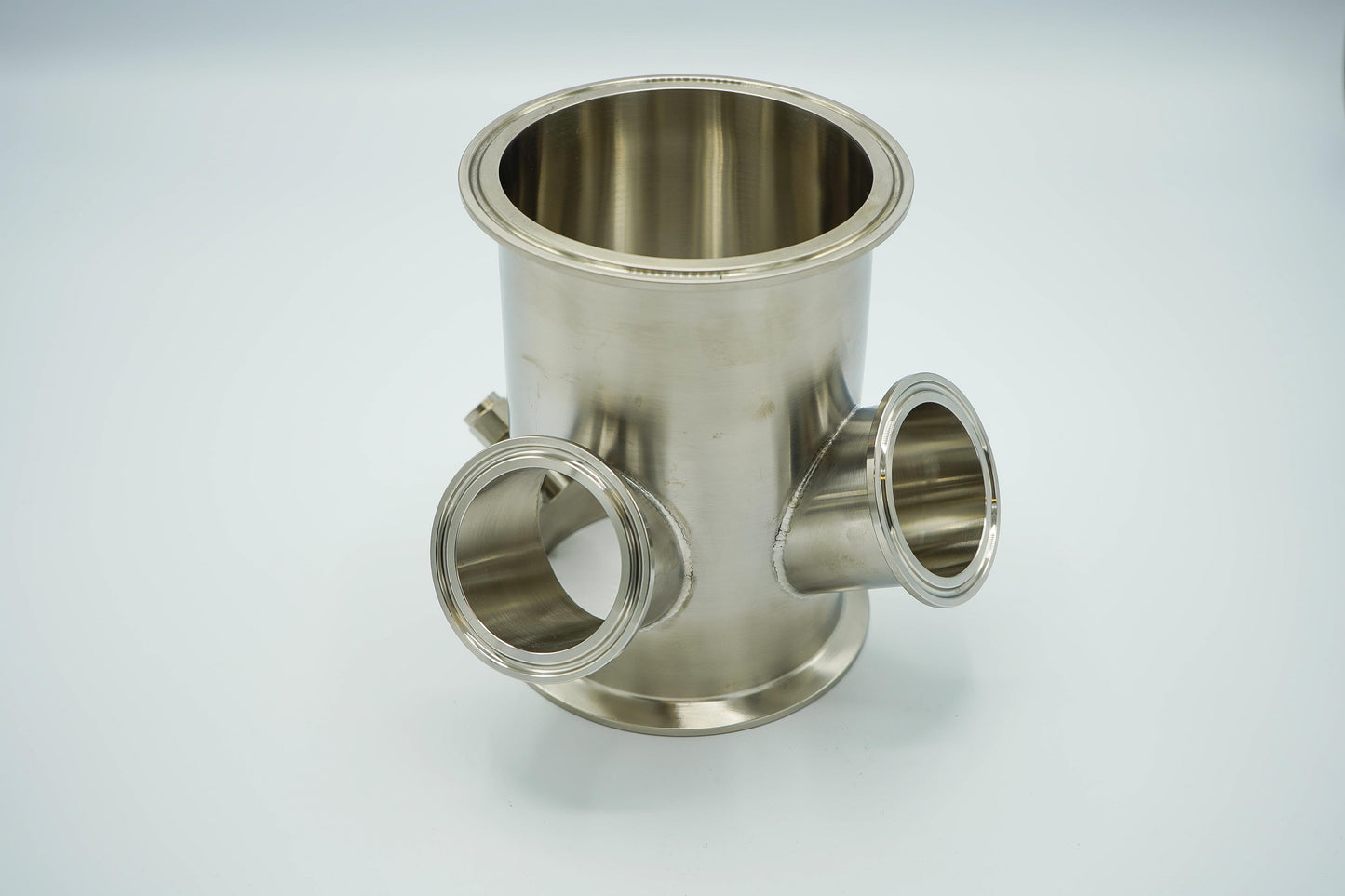

Sight glasses are not included. You are buying the bare spool, with the ports welded in and empty. A pair of windows adds about $900.

What is in the box

  • One 4 in by 6 in spool, 304L stainless, 0.085 in wall, number 4 polish, 4.685 in across the ferrule
  • A 4 in tri clamp ferrule on each end

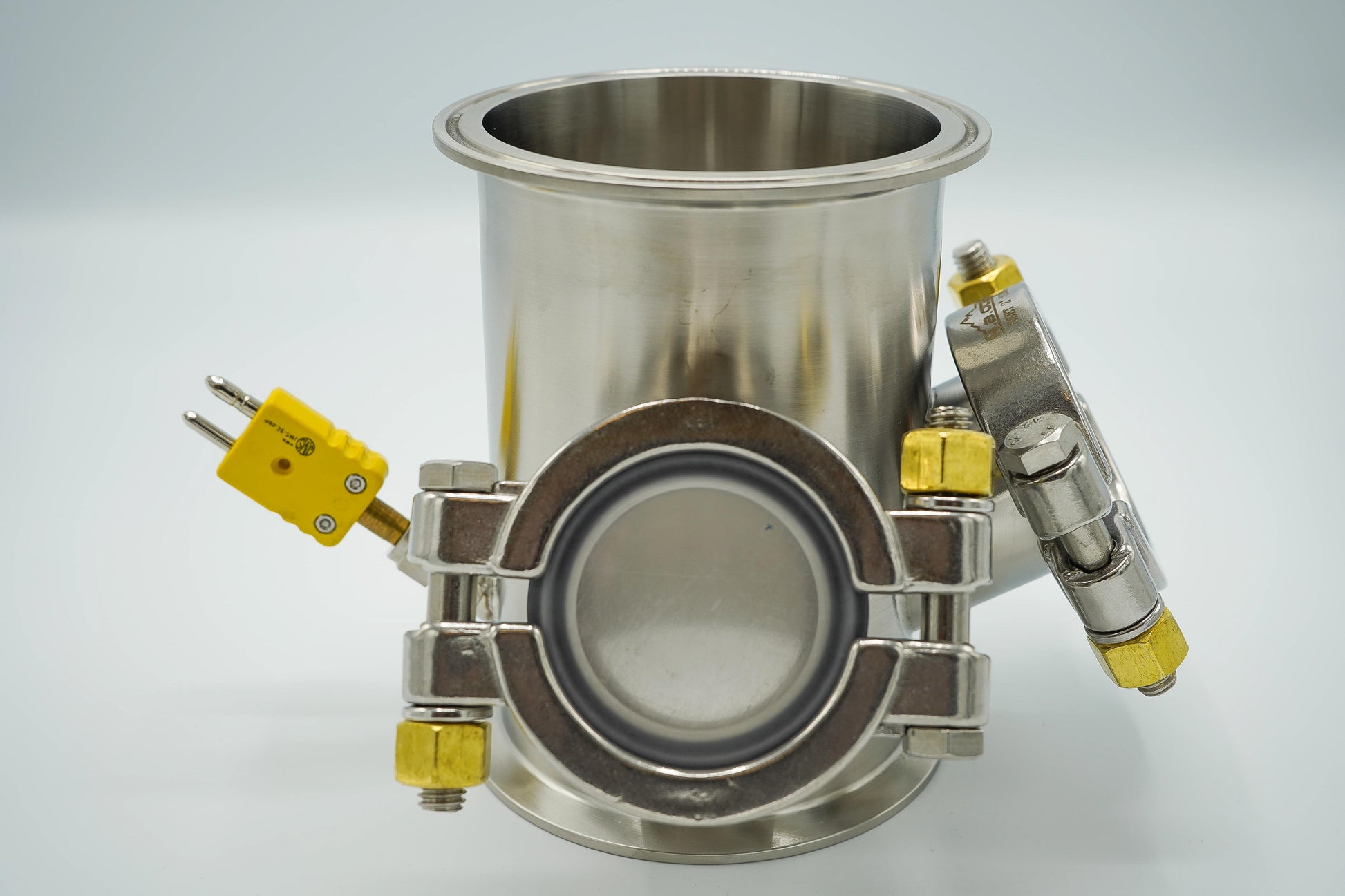

  • Two 2 in sight ports on 56 mm ferrules, set at an angle so you look down into the flow rather than straight across it
  • One 1/4 in weld bore through for a thermocouple, plus a 1/4 in plug for it, so the spool runs sealed out of the box

The thermocouple probe is not included. It is a 1/4 inch K type, 4 inch length, sold separately. It drops into a 4 inch column and lets you watch the run: color, consistency, volume, whether solvent is still flashing off.

Pressure and temperature

Bare shell 304L stainless, 0.085 in wall. Not the limit in your system
Fitted with a Rayotek window 300 psi (20.7 bar)
Fitted with a MetaClamp window 232 psi (16 bar), per Metaglas's published ratings
Vacuum -1.0 bar (-15 psi), set by the 2 in sight glass for the whole system. Metaglas publishes -1.0 bar for the MetaClamp and our report puts the Rayotek at -15 psi
System design pressure 250 psi (17.2 bar) on an N.B. Oler hydrocarbon system
Vessel design temperature 93 °C (200 °F)
System operating temperature 50 °C (122 °F)

Once windows are in, the glass governs and not the shell. The lowest applicable limit always governs.

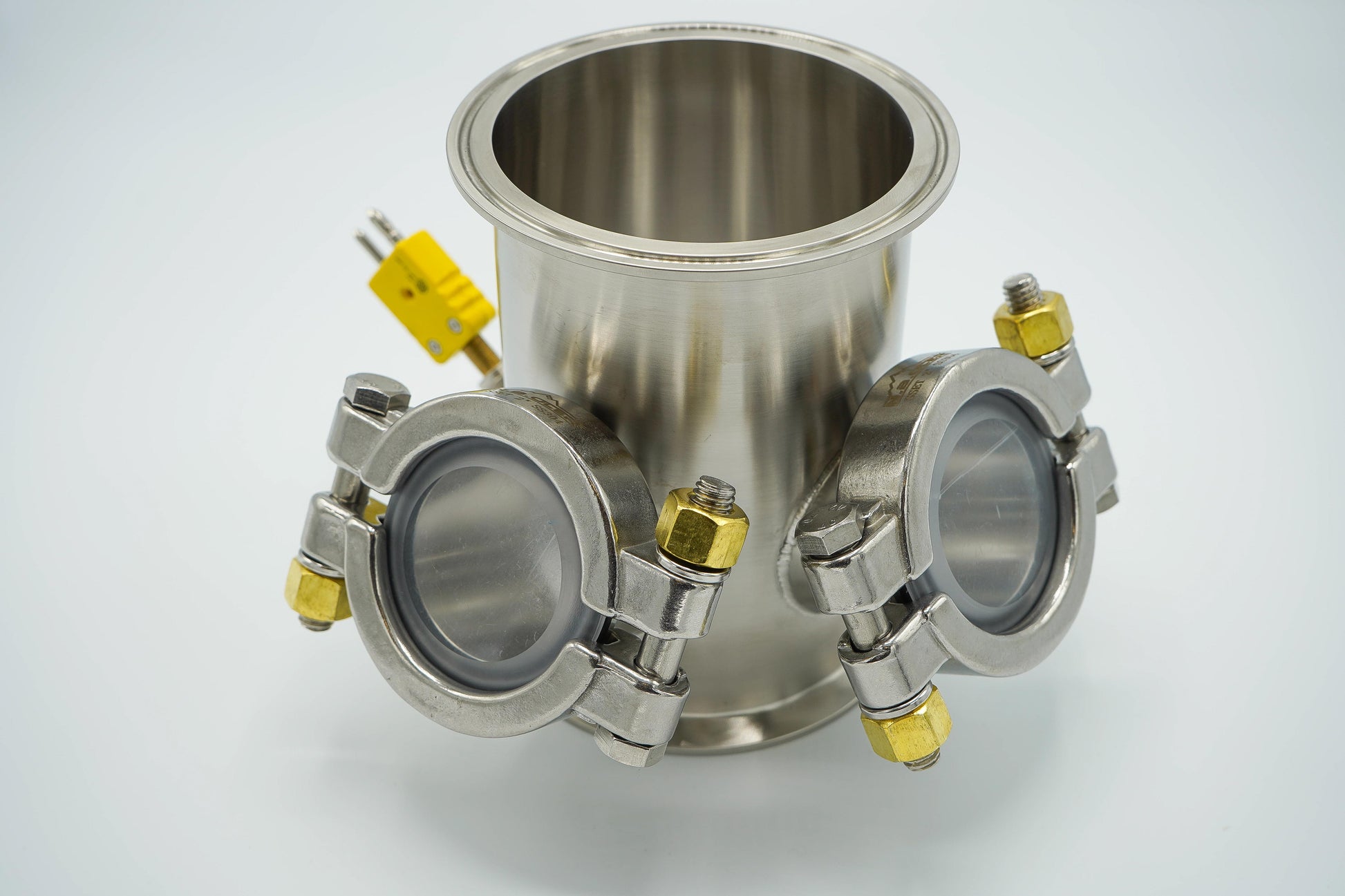

What you also need to finish the build

  • Two 2 inch sight glasses, Rayotek or MetaClamp, both borosilicate in 2205 duplex
  • Two 2 inch gaskets, Viton or PTFE envelope
  • Two 2 inch high pressure clamps, to hold the windows in
  • Two 4 inch gaskets and two 4 inch clamps, to put the spool into your column
  • One 1/4 inch K type thermocouple probe, 4 inch, if you want temperature. The port ships plugged if you do not

We build a 6 inch version of this spool too, same construction. There is no 3 inch and no 8 inch.

Service

  • Inspect the windows every time the spool is apart, and replace any that are chipped, cracked or scratched rather than running them
  • Gaskets are consumable. Keep spares for both the 2 inch and the 4 inch joints
  • Our operators manual has you observe the oil through the sight glasses before opening a collection valve, and this is the part that makes that possible

Built in house in Bend, Oregon.

View full details
4" Sight Glass Spool, 6" Tall, Two 2" Ports and Thermocouple Port
NB-SPL-SIGHT-04IN

4" Sight Glass Spool, 6" Tall, Two 2" Ports and Thermocouple Port

$300.00IN STOCK

ABOUT THIS PART

A 4 inch diameter by 6 inch tall 304L stainless spool with two 2 inch sight ports and a 1/4 inch thermocouple port, built in house in Bend, Oregon. $300.00.

SPECIFICATIONS

TypeSight glass spool, bare. Sight glasses NOT included
Built byN.B. Oler, in house, Bend, Oregon
Tube diameter4.000 in
Tube wall0.085 in
Height6.000 in
Across the ferrule4.685 in
End connections4 in tri clamp ferrule, both ends
Sight portsTwo, 2 in on 56 mm ferrules, set at an angle
Thermocouple portOne, 1/4 in weld bore through, ships plugged
Thermocouple plugOne 1/4 in plug included, so the spool runs sealed out of the box
Thermocouple probeNOT included. Add a 1/4 in K type probe, 4 in length
Material304L stainless
FinishNumber 4 polish
Price$300.00, spool only
Governing limit once glazedThe sight glass, not the shell. Rayotek 300 psi (20.7 bar), MetaClamp 232 psi (16 bar) per Metaglas's published ratings. The 2 in sight glass also limits the whole system on vacuum at -1.0 bar (-15 psi)
System design pressure250 psi (17.2 bar) on an N.B. Oler hydrocarbon system
System temperatureVessel designed to 93 C (200 F), system operates to 50 C (122 F). The lowest applicable limit governs
Also needsTwo 2 in sight glasses, two 2 in gaskets, two 2 in high pressure clamps, two 4 in gaskets, two 4 in clamps, and a 4 in K type probe if you want temperature
Larger size6 in sight glass spool, same construction

Sight glasses are not included. You are buying the bare spool, with the ports welded in and empty. A pair of windows adds about $900.

What is in the box

  • One 4 in by 6 in spool, 304L stainless, 0.085 in wall, number 4 polish, 4.685 in across the ferrule
  • A 4 in tri clamp ferrule on each end
  • Two 2 in sight ports on 56 mm ferrules, set at an angle so you look down into the flow rather than straight across it
  • One 1/4 in weld bore through for a thermocouple, plus a 1/4 in plug for it, so the spool runs sealed out of the box

The thermocouple probe is not included. It is a 1/4 inch K type, 4 inch length, sold separately. It drops into a 4 inch column and lets you watch the run: color, consistency, volume, whether solvent is still flashing off.

Pressure and temperature

Bare shell 304L stainless, 0.085 in wall. Not the limit in your system
Fitted with a Rayotek window 300 psi (20.7 bar)
Fitted with a MetaClamp window 232 psi (16 bar), per Metaglas's published ratings
Vacuum -1.0 bar (-15 psi), set by the 2 in sight glass for the whole system. Metaglas publishes -1.0 bar for the MetaClamp and our report puts the Rayotek at -15 psi
System design pressure 250 psi (17.2 bar) on an N.B. Oler hydrocarbon system
Vessel design temperature 93 °C (200 °F)
System operating temperature 50 °C (122 °F)

Once windows are in, the glass governs and not the shell. The lowest applicable limit always governs.

What you also need to finish the build

  • Two 2 inch sight glasses, Rayotek or MetaClamp, both borosilicate in 2205 duplex
  • Two 2 inch gaskets, Viton or PTFE envelope
  • Two 2 inch high pressure clamps, to hold the windows in
  • Two 4 inch gaskets and two 4 inch clamps, to put the spool into your column
  • One 1/4 inch K type thermocouple probe, 4 inch, if you want temperature. The port ships plugged if you do not

We build a 6 inch version of this spool too, same construction. There is no 3 inch and no 8 inch.

Service

  • Inspect the windows every time the spool is apart, and replace any that are chipped, cracked or scratched rather than running them
  • Gaskets are consumable. Keep spares for both the 2 inch and the 4 inch joints
  • Our operators manual has you observe the oil through the sight glasses before opening a collection valve, and this is the part that makes that possible

Built in house in Bend, Oregon.

FITSFits any 4 inch tri clamp column or vessel. Used on N.B. Oler hydrocarbon systems in the material column. Takes two 2 inch sight windows, Rayotek at 300 psi (20.7 bar) or MetaClamp at 232 psi (16 bar) per Metaglas's published ratings, and one 1/4 inch K type thermocouple probe in a 4 inch length. Sight glasses, gaskets, clamps and probe are all sold separately. A 6 inch version is available; there is no 3 inch or 8 inch.

▦ IN YOUR MANUAL

This part appears in the operator manual that ships with your system. The QR code there links to this page.

◈ REFERENCE FOR THIS PART

Tri-Clamp Pressure Ratings by Clamp Style and Size →
What the 2 inch and 4 inch joints on this spool are rated to
Chemical Compatibility: Seals, Gaskets and Stainless →
Which gasket survives the cold end on the window and on the spool joints
Stainless Steel: 304, 316 and 316L →
The 304 shell on this spool, and what the grade buys you
Metaglas published ratings, MetaClamp Type 80, 2 in ASME BPE size →
the manufacturer's published 232 psi (16 bar) for the 2 inch window this spool takes
3P Certz reports ECR-250902-R0 and DCR-200101-R1 →
the 2 inch sight glass as the limiting component on vacuum, and the vessel design temperature
N.B. Oler Hydrocarbon Operators Manual, Rev. 2026.1
observing the run through the sight glasses before opening a collection valve

COMMON QUESTIONS

Does it come with sight glasses?

No. You are buying the bare spool. The two 2 inch ports and the thermocouple port are welded in and empty.

What do I need to buy with it?

Two 2 inch sight glasses, two 2 inch gaskets, two 2 inch high pressure clamps, two 4 inch gaskets and two 4 inch clamps to mount the spool, and a 1/4 inch K type probe in 4 inch if you want temperature.

Is a thermocouple included?

No. The port is, and it ships with a plug in it so the spool runs sealed. The probe is a 1/4 inch K type, 4 inch length, sold separately.

What pressure is it good for?

Once you fit windows the glass governs, not the shell. That is 300 psi (20.7 bar) with a Rayotek window or 232 psi (16 bar) with a MetaClamp, the latter from Metaglas's own published ratings. The 2 inch sight glass also limits the whole system on vacuum at -1.0 bar (-15 psi). The lowest applicable limit always governs.

What is it made of?

304 stainless, 0.085 inch wall, number 4 polish.

Why are the sight ports at an angle?

So you can see down into the flow rather than straight across it, which is what you want when you are judging color and whether solvent is still coming off.

Which sight glass should I use?

Either, and we fit both. They are not identical on paper. Metaglas publishes 232 psi (16 bar) and -22 F to 536 F, which is -30 C to 280 C, for the 2 inch MetaClamp. Rayotek publishes 300 psi (20.7 bar) and -40 F to 572 F, which is -40 C to 300 C, and the Rayotek is the one named by part number in ECR-250902-R0. The MetaClamp is usually the one on the shelf. If you are certifying or matching an as built, confirm the window with your own certifier.

Do you make a 6 inch?

Yes, same construction. There is no 3 inch and no 8 inch.

How tall is it?

6.000 inches, and 4.685 inches across the ferrule.
