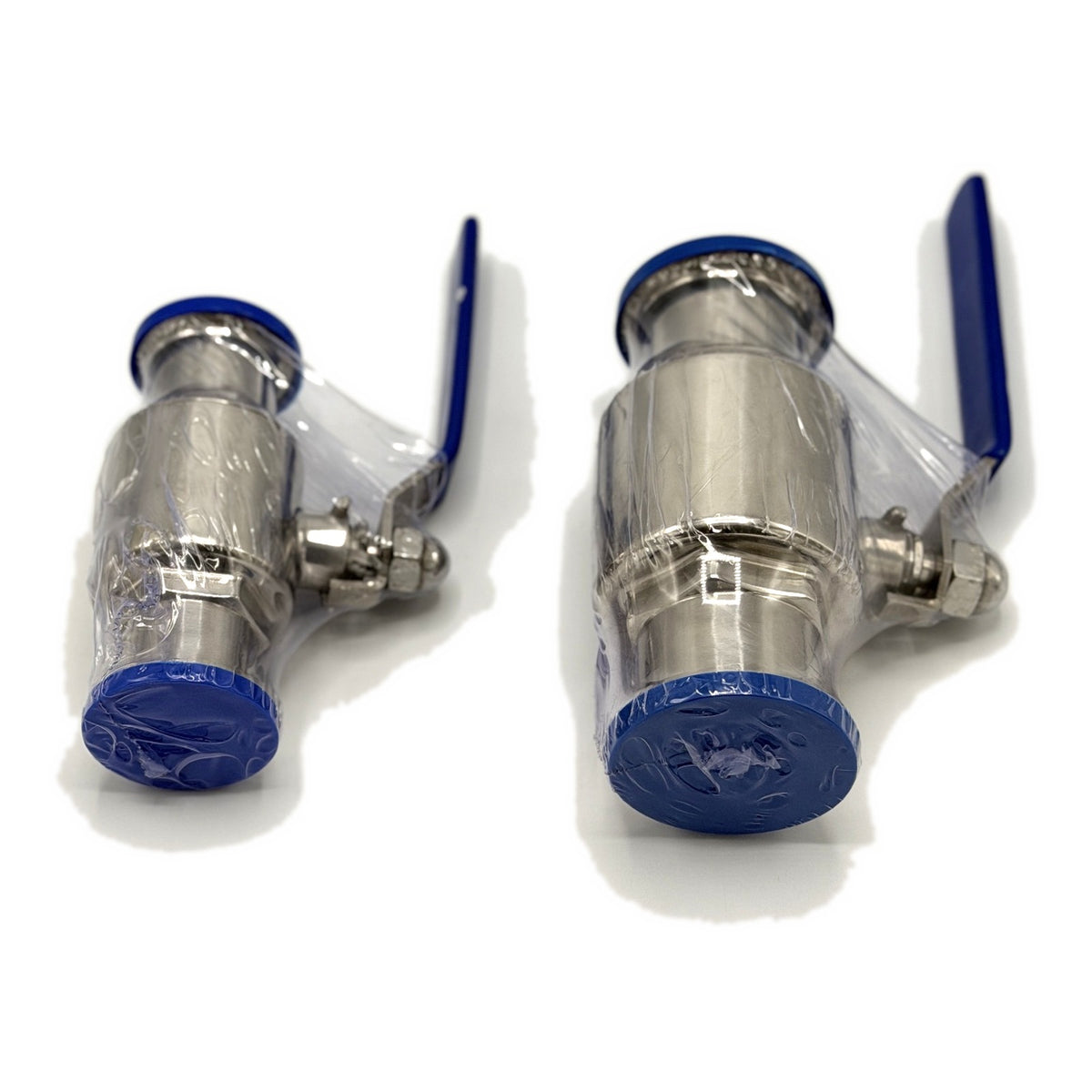

Tri Clamp Ball Valve, Non-Encapsulated, Sanitary, 1" to 2"
ABOUT THIS PART
Non-encapsulated tri clamp ball valve, 304 stainless with a full port PTFE seat, in 1 in, 1.5 in and 2 in. $46.95, $64.95 and $88.95, rated 15 bar (218 psi).
Clearance, and we are not restocking. These are marked down roughly 20 percent off our own shelf price to move them, and when they are gone the listing goes with them. They are in Bend right now, so they ship rather than arriving after a lead time.
Sizes and prices
| Tri clamp size | Was | Clearance price |
|---|---|---|
| 1 in | $58.95 | $46.95 |
| 1.5 in | $83.95 | $64.95 |
| 2 in | $114.95 | $88.95 |
| Body | 304 stainless, full port, so there is no step to drop pressure across |
| Seat | Two piece PTFE, seated in the body cavity |
| Rebuildable | No. No replacement seat is made for this valve |
| Pressure rating | 15 bar (218 psi) |
| Temperature range | -22 °F to 248 °F (-30 °C to 120 °C) |
| Ends | Sanitary tri clamp both sides. Gaskets and clamps are separate parts |
One thing to be straight about: this valve is not rebuildable. The body opens for cleaning and inspection, but the seat is a two piece PTFE seal and no replacement seat is made for it. Treat the seat as the life of the valve and buy a spare valve rather than a spare seat. If you want one you can actually rebuild, that is the economy encapsulated valve, which takes a PTFE seal kit.
This one or the encapsulated one
The choice is the cavity, and it is not close once you know whether the cavity matters to you.
| Non-encapsulated (this valve) | Economy encapsulated | |
|---|---|---|
| Ball and seat | Two piece PTFE seat in a body cavity | PTFE encapsulated ball, no internal cavity |
| Cleaning | The cavity can hold product. Clean it properly and you are taking it apart | Nothing for product to sit in, so it cleans in place |
| Rebuildable | No. The body opens, but no replacement seat is made for it | Yes. Three piece bolted body, and a PTFE seal kit is made for it |
| Pressure rating | 15 bar (218 psi) | 16 bar (232 psi), 1000 WOG |
| Handle | Lever | Lockable pull handle |
| Clearance price, 1 in to 2 in | $46.95, $64.95, $88.95 | $79.95, $123.95, $163.95 |
Take this valve on water, glycol or a clean transfer line where a cavity is not a problem, and to spend less. Take the economy encapsulated valve when product sitting in a cavity is the problem you are solving, or when you want a valve you can rebuild instead of replace. Both are final stock.
Fitment
- Fits standard sanitary tri clamp ferrules in 1 in, 1.5 in and 2 in
- Not a compression fitting valve. If you are plumbing 3/8 in or 1/2 in tube, you want the Superlok compression ball valves instead
- Not for a hydrocarbon system. At 15 bar (218 psi) this valve sits below the 250 psi (17.2 bar) design pressure we build extraction systems to, and it is not an ASME pressure part. It is a sanitary transfer valve
- Needs a tri clamp and a gasket on each end: Viton or Buna-N
- On the shelf in Bend, Oregon. Orders in by 1 PM Pacific usually ship the same day
