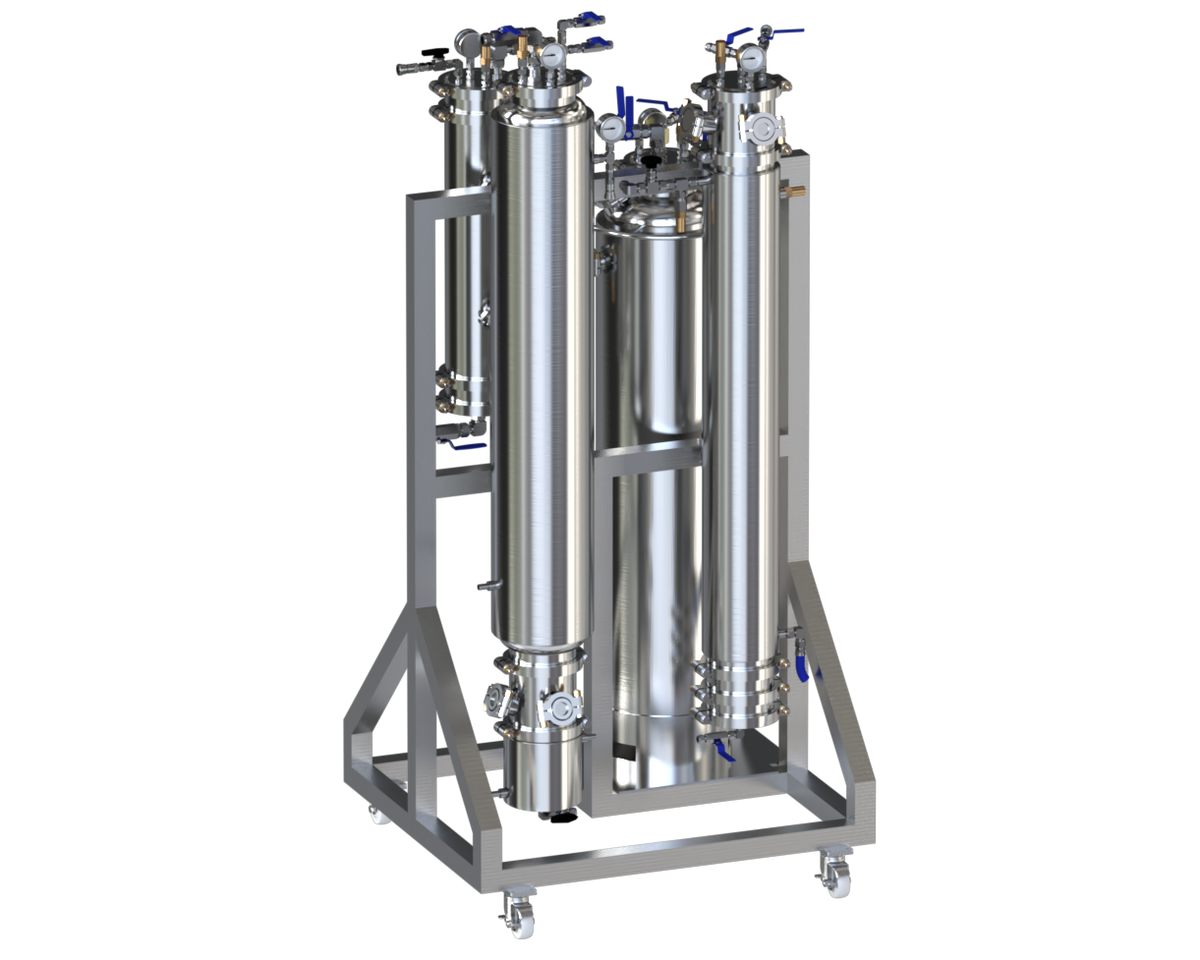

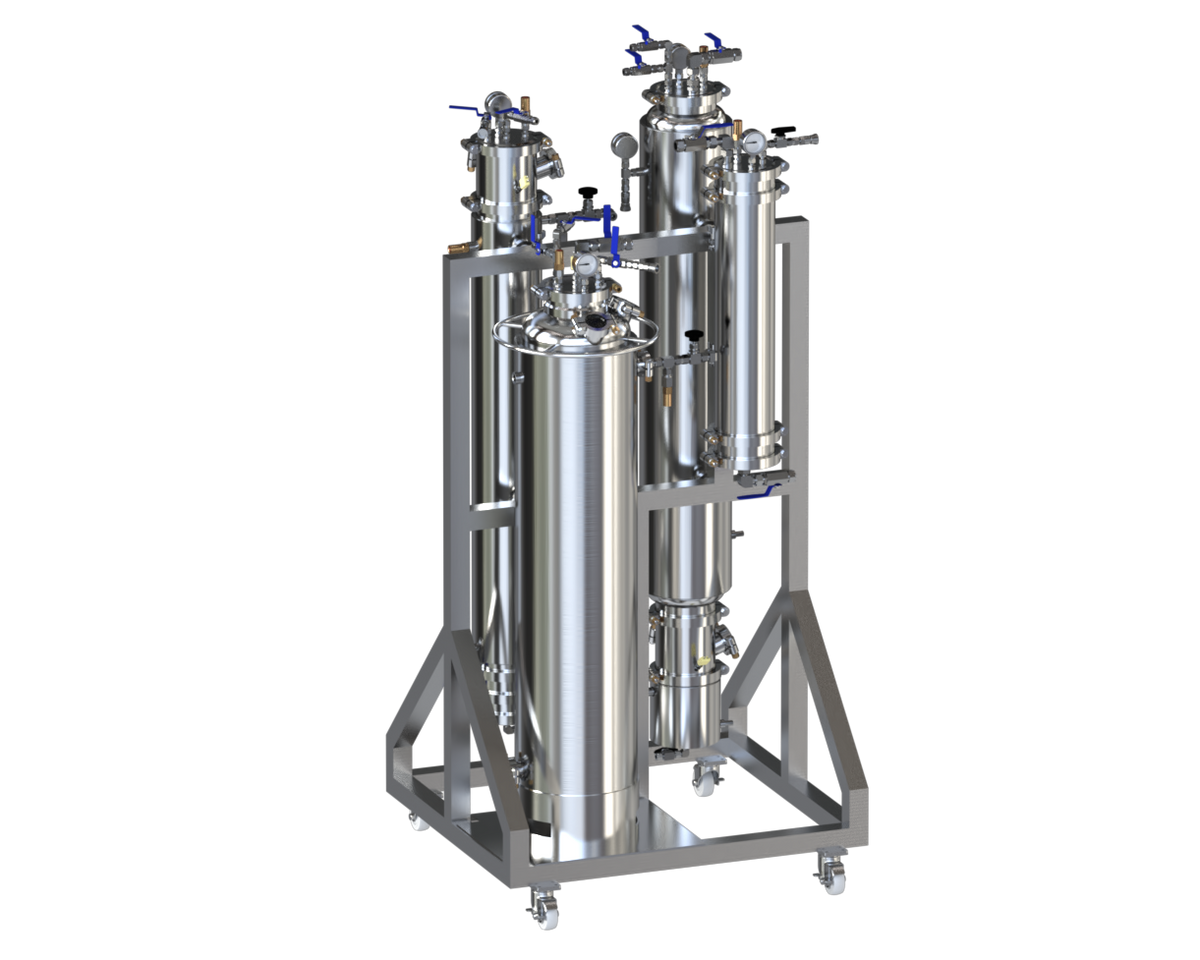

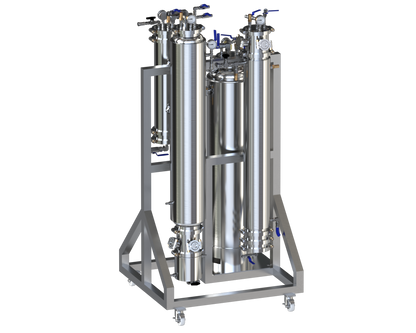

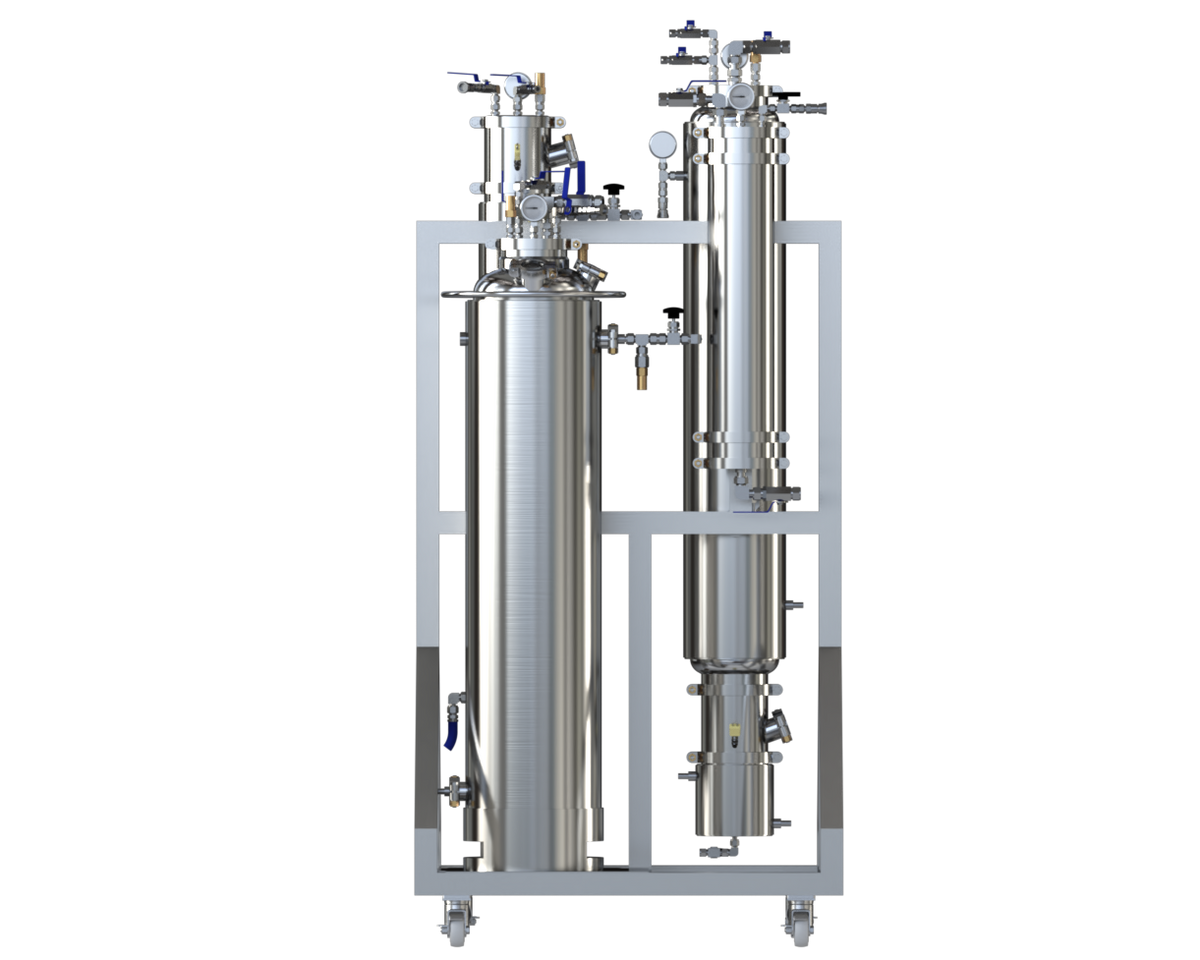

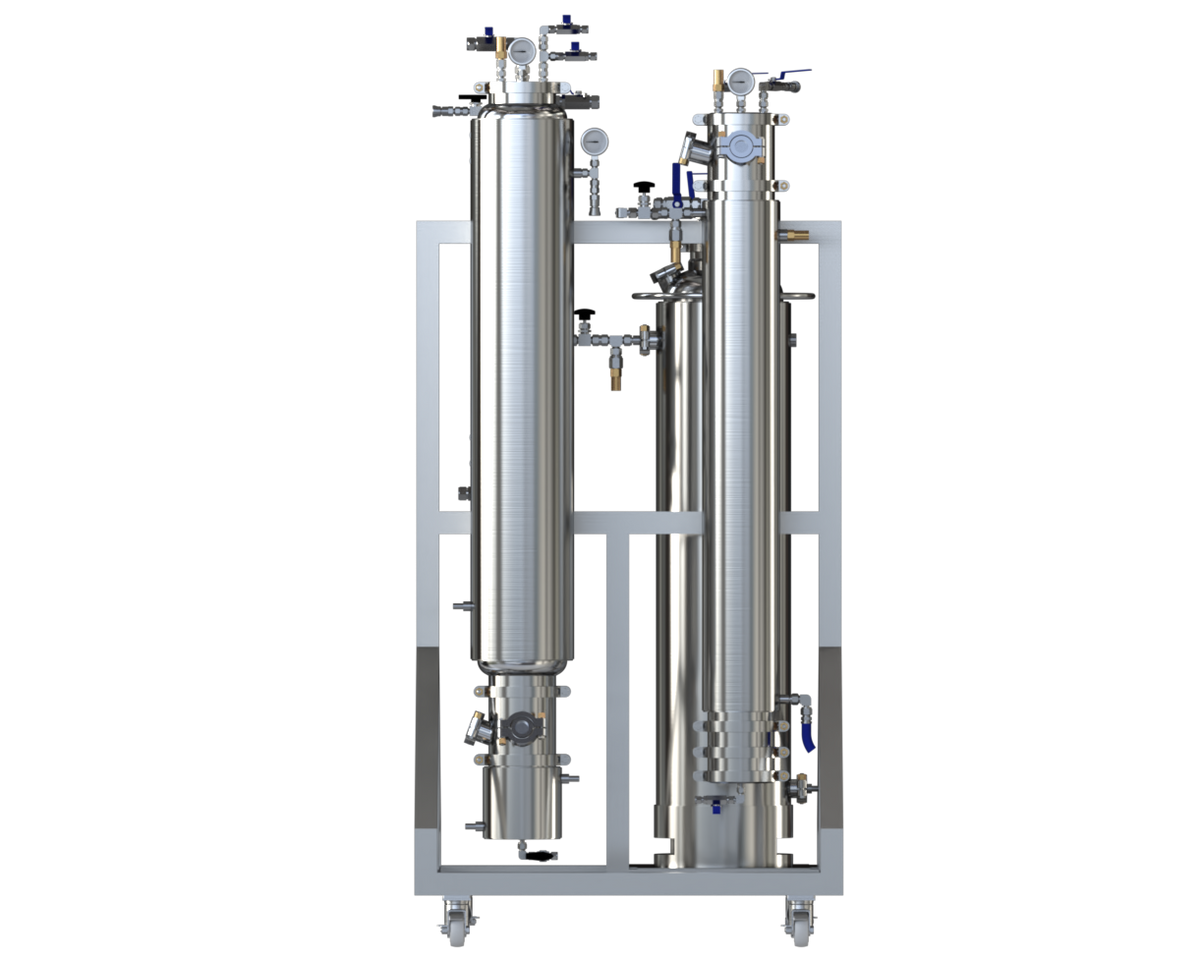

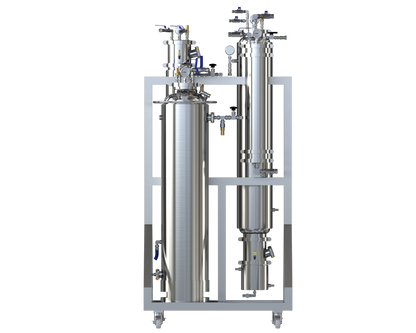

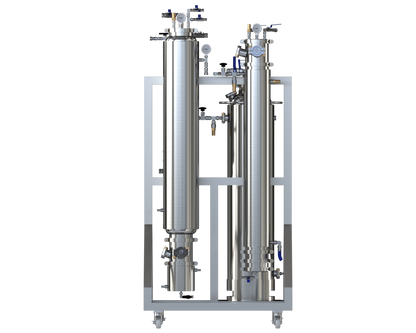

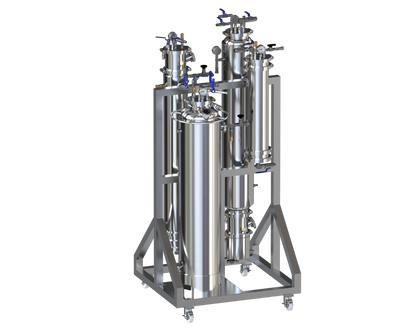

10 LB Passive Hydrocarbon Extraction System
10lb Passive System
We have designed a system to maximize efficiency and simplify the extraction process. Built with quality Swagelok/Superlok components and traceable materials, all welds are done in house using ASME welding processes. With multiple configurations this can be ran as a crude or live resin machine and everything in between. In-line filtration with stainless sintered filters, LC02 pressure rated jackets, multiple sight glasses for ease of operation, everything you need to get running. Customizable material, recovery & solvent tank options and upgrades available.
Please call for lead times/availability 541-330-6409. Engineered and built in house. 12 week lead time, expedite available with additional charges.
Full ASME systems available as of 1/12/2021. Contact us for details.
6"x 48" w/7" jacket material column, bowl reducer, cap w/all Swagelok fittings/hoses, LCO2 chilled. 50 & 20 Micron Sintered filters.
8" x 52" w/9" jacket recovery column, jacketed bowl reducer, cap w/all Swagelok fittings/hoses, hot water jacket.
75lb solvent tank LCO2 chilled.
6" x 24" Molecular sieve, cap w/all Swagelok fittings/hoses.
TRS21 Vacuum Pump, used only to pull down to -30in/Hg. 8ft hose w/quick connect.
N2 Regulator, 8ft. hose w/quick connect.
4500g--9.9lbs Material Volume.
N.B.Oler is American Fabricated Stainless steel, made in Bend Or.
District of Columbia
(System picture has additional variations added)
All products are subject to a 15% restocking fee, custom orders may be subject to as high as 50%.
